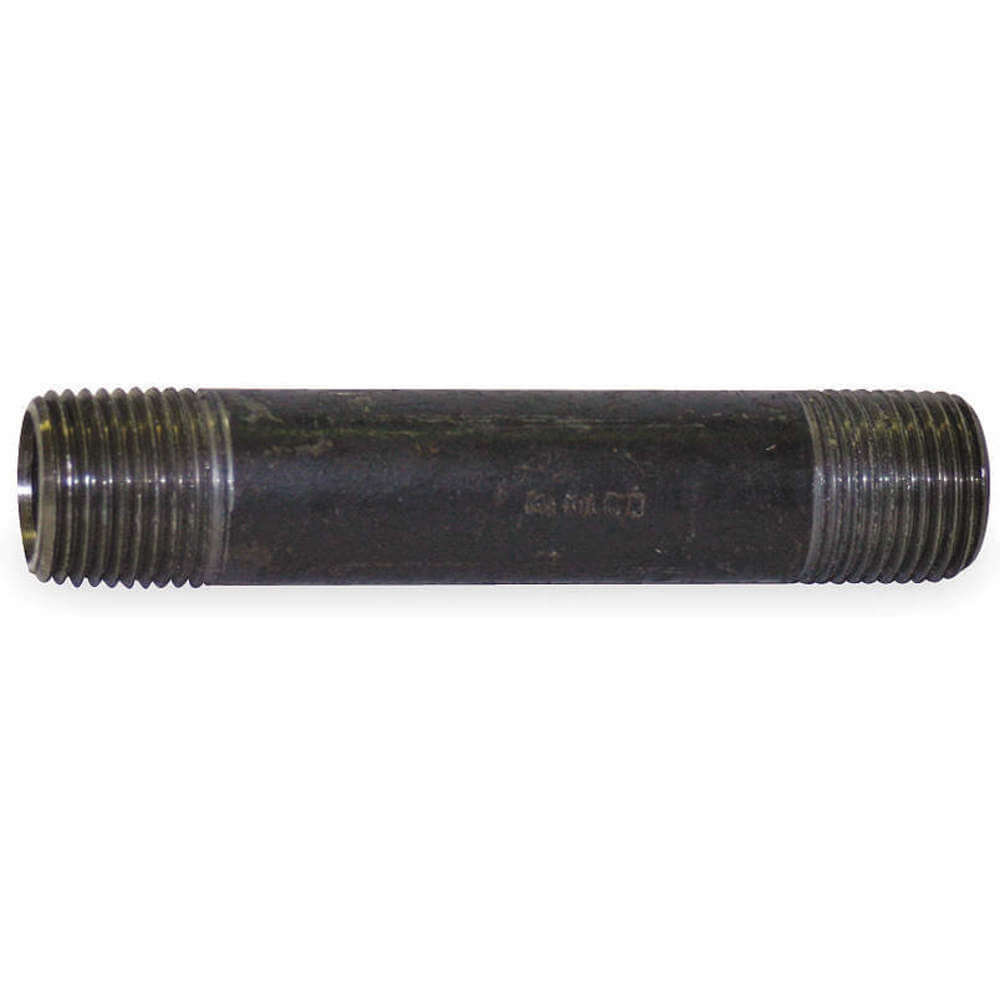

NIPPLES 0332618800 Pipe Nipple 3/4 Inch 1-1/2 Inch Length

Product Description

The NIPPLES 0332618800 is a pipe nipple suited for various plumbing tasks. Made from steel, this fitting comes with threaded connections on both ends and complies with Schedule 80 specifications. It is ideal for transporting air, gas, non-potable water, oil, and steam. This product meets ASTM A106 GRADE B and ASTM A733 standards.

• Nominal pipe size of three-fourth inch
• Overall length of one and one-half inch
• Threaded connections at both ends

Product Highlights

This pipe nipple is designed for heavy-duty applications, providing strong and reliable connections.

Product Information

Standard Information

• MPN: 0332618800
• Item: Nipple

Technical Specifications

• Basic Connection Type: Threaded At Both Ends
• Body Material: Steel
• Nominal Pipe Size: 3/4 inch
• Inside Diameter: 3/4 inch
• Overall Length: 1.5 inches
• Maximum Pressure: 3000 psi
• Maximum Steam Pressure: 300 psi @ 550°F
• Outside Diameter: 1.05 inches
• Schedule: 80
• Seamless/welded: Seamless
• Wall Thickness: 0.141 inches
• Application: Air, Gas, Non-Potable Water, Oil, Steam
• Finish/coating: Black Anodized
• Fitting Compatibility: Schedule 80
• Material Grade: Grade B
• Maximum Operating Pressure: 2000 psi @ 150°F
• Metal Pipe Construction: Seamless
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: NPT
• Standards: ASTM A106 GRADE B, ASTM A733, ANSI B1.20.1
• Thread Configuration: Threaded on Both Ends
• UNSPSC Code: 40175305
• Material: Steel
• Weight: 0.15 lbs
