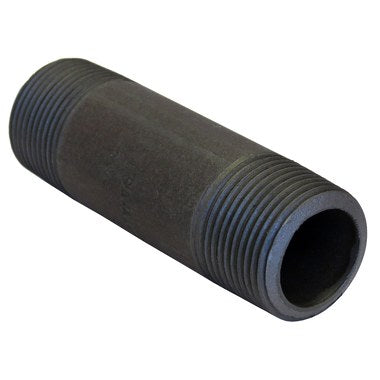

NIPPLES 0332615608 Black Pipe Nipple - 1/2x5 In

Product Description

The NIPPLES 0332615608 is a black steel pipe nipple with a nominal pipe size of half inch and an overall length of five inches. It features threaded connections on both ends, conforming to MNPT x MNPT pipe thread type.

Constructed to Schedule 80, the pipe has a wall thickness of nine sixty-fourths inch, an inside diameter of half inch, and an outside diameter of fifty-three sixty-fourths inch. It is designed to withstand a maximum pressure of two thousand psi at one hundred fifty degrees Fahrenheit and a maximum steam pressure of three hundred psi WSP at five hundred fifty degrees Fahrenheit. The pipe nipple adheres to ASTM A106 Grade B Seamless Pipe and ASTM A733 standards.

• Constructed from black steel material.
• Features threaded connections on both ends, adhering to MNPT x MNPT standards.
• Compliant with ASTM A106 Grade B and ASTM A733 standards.

Product Highlights

This black pipe nipple is suitable for various applications including plumbing, heating, and industrial piping systems.

Product Information

Standard Information

• Brand: NIPPLES
• MPN: 0332615608

Technical Specifications

• Pipe Schedule: 80
• Connection Type: Threaded on Both Ends
• Material: Black Steel
• Pipe Size - Nominal: 1/2 In.
• Overall Pipe Length: 5 In.
• Pipe Thread Type: MNPT x MNPT
• Max Pressure: 2000 psi @ 150 Degrees F
• Max Steam Pressure: 300 psi WSP @ 550 Degrees F
• Wall Thickness: 9/64 In.
• Inside Dia: 1/2 In.
• Outside Dia: 53/64 In.
• Standards: ASTM A106 Grade B Seamless Pipe, ASTM A733
