NIPPLES 0332614403 Black Pipe Nipple Threaded 1/2x2 In

Product Description

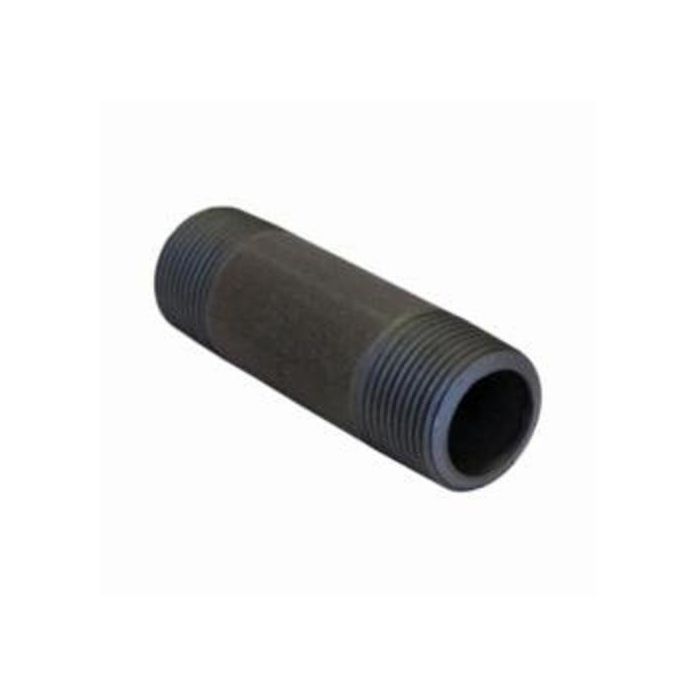

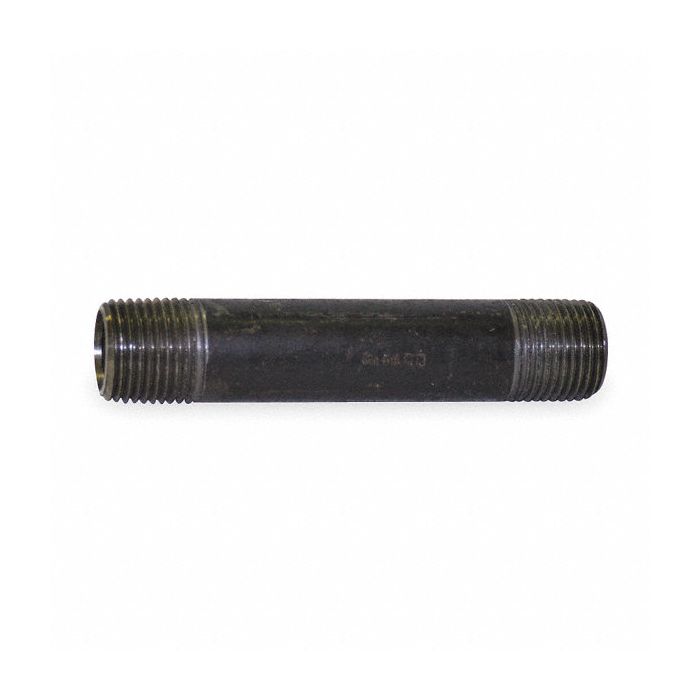

The NIPPLES 332614403 is a black pipe nipple made from black steel. This product meets ASTM A106 Grade B Seamless Pipe and ASTM A733 standards, making it suitable for various applications.

• Constructed from black steel material.
• Features threaded connections on both ends (MNPT x MNPT).
• Compliant with industry standards for seamless pipes.

Product Highlights

This pipe nipple is designed with a nominal size of one half inch and an overall length of two inches. It is built for robustness with a Schedule 80 construction.

Product Information

Standard Information

• Pipe Material: Black Steel
• Pipe Size - Nominal: 1/2 inch

Technical Specifications

• Connection Type: Threaded on Both Ends
• Overall Length: 2 inches
• Pipe Thread Type: MNPT x MNPT
• Max Pressure: 2000 psi at 150 degrees Fahrenheit
• Max Steam Pressure: 300 psi WSP at 550 degrees Fahrenheit
• Wall Thickness: 9/64 inch
• Inside Diameter: 1/2 inch
• Outside Diameter: 53/64 inch
• Standards: ASTM A106 Grade B Seamless Pipe, ASTM A733
