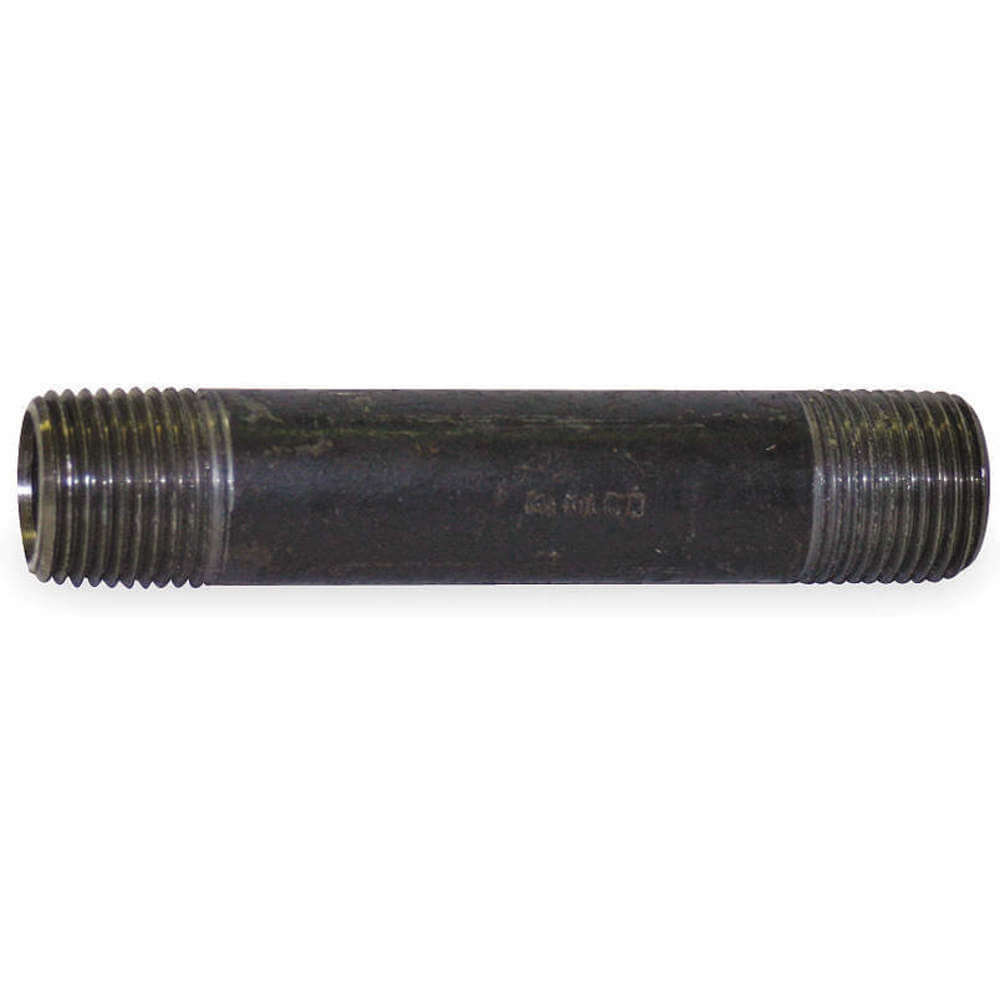

NIPPLES 0332606805 Pipe Nipple 1/4 Inch Size 6 Inch Length

Product Description

The NIPPLES 0332606805 is a pipe nipple made from Grade B steel. It is designed for various applications including air, gas, non-potable water, oil, and steam. This product has a black anodized finish and is seamless with male NPT threads on both ends.

• Constructed from Grade B steel
• Threaded on both ends with male NPT threads
• Compatible with Schedule 80 fittings

Product Highlights

This pipe nipple is suitable for use in high-pressure environments, rated for up to 2000 psi at one hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Item: Nipple
• Application: Air, Gas, Non-Potable Water, Oil, Steam

Technical Specifications

• Finish/coating: Black Anodized
• Fitting Compatibility: Schedule 80
• Inside Diameter: 1/4 inches
• Material: Steel
• Material Grade: Grade B
• Maximum Operating Pressure: 2000 psi @ 150 degrees Fahrenheit
• Maximum Steam Pressure: 300 psi @ 550 degrees Fahrenheit
• Metal Pipe Construction: Seamless
• Nominal Pipe Size: 1/4 inches
• Outside Diameter: 1/2 inches
• Overall Length: 6 inches
• Side A Connection Type: Threaded
• Side A Gender: Male
• Side A Thread Type: NPT
• Side B Connection Type: Threaded
• Side B Gender: Male
• Side B Thread Type: NPT
• Standards: ASTM A106 GRADE B, ASTM A733
• Thread Configuration: Threaded on Both Ends
