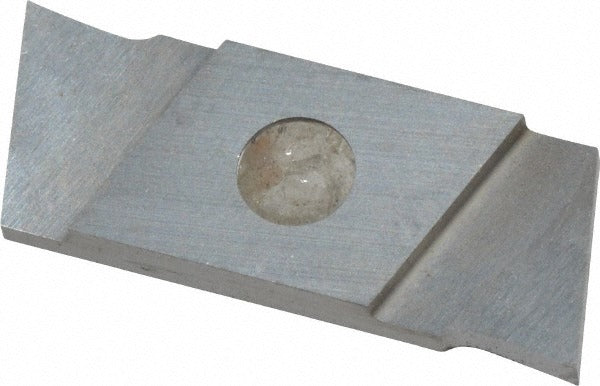

Nikcole Mini-systems GIE7SG1.3LC2 Grooving Insert C2

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG1.3LC2 is a solid carbide left-hand grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries a C2 grade carbide designation and features a 1.3 mm cutting width with a maximum depth of cut of 6.00 mm, making it well-suited for shallow to mid-depth groove profiles. The SG chip breaker geometry promotes controlled chip formation during interrupted or continuous grooving passes. Installation is by screw-hold clamping, providing repeatable seating and rigid tool support across high-cycle production environments. Machinists and toolroom technicians working with this insert should verify left-hand orientation matches the intended tool block or holder configuration before mounting.

This insert is intended for use in turning and grooving applications where tight groove width tolerances and consistent depth control are required. The GIE style designation places it within the Nikcole Mini-Systems series, which targets small-diameter and precision-profile grooving work. It is suited for production shops, job shops, and toolroom environments running ferrous and non-ferrous workpiece materials within the C2 grade operating range. The screw-clamp holding method makes it compatible with corresponding GIE-series tool bodies designed for this insert geometry.

Key Features

• Left-hand cutting orientation for dedicated left-hand grooving and face grooving setups
• 1.3 mm cutting width (0.0512 inches) for narrow groove profiles with tight dimensional tolerances
• Maximum depth of cut of 6.00 mm (0.2362 inches) within a usable range of 5.00 mm to 10.00 mm
• Solid carbide construction in C2 grade for wear resistance and edge stability
• SG chip breaker geometry for controlled chip evacuation during grooving passes
• Screw-clamp insert holding method for secure, repeatable seating in compatible tool bodies
• ISO 9001 certified manufacturing process

Compatibility

Designed for use with GIE-series screw-clamp tool holders within the Nikcole Mini-Systems product family. Verify that the holder accepts the GIE-7-SG-1.3 L insert style and left-hand orientation before installation. No additional compatible model numbers were specified in the product data.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or removing the insert. Use the manufacturer-recommended torx or hex key to tighten the clamping screw; do not exceed the tool body manufacturer's specified clamping torque as stated in the holder documentation. Confirm left-hand insert orientation against the tool block setup sheet before running a test pass.
