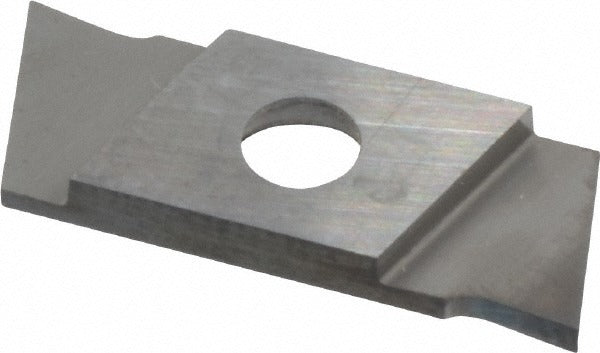

Nikcole Mini-systems GIE7SG1.1L C2 Grooving Insert Solid Carbide

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG1.1L C2 is a solid carbide left-hand grooving insert designed for precision groove turning and parting operations on CNC lathes and turning centers. With a cutting width of 1.1 mm (0.0433 inches) and a maximum depth of cut of 6 mm (0.2362 inches), this insert handles tight-tolerance groove work where dimensional accuracy is critical. The C2 carbide grade provides a balance of hardness and wear resistance suited to a range of workpiece materials. Installation is secured via screw-hold clamping. The SG chip breaker geometry promotes controlled chip evacuation in grooving applications.

This insert is intended for use in left-hand grooving toolholders within the Nikcole Mini-Systems series. It is suited for residential and industrial machining shops performing small-diameter groove work, O-ring groove cutting, undercut operations, and similar precision turning tasks on metal workpieces. Machinists, CNC operators, and tool-and-die professionals working with compatible Nikcole Mini-Systems toolholders are the primary installers of this insert.

Key Features

• Solid carbide construction in C2 grade for consistent wear resistance and edge integrity
• 1.1 mm cutting width (0.0433 inches) enables tight, accurate groove profiles
• Maximum depth of cut of 6 mm (0.2362 inches) with an applicable range of 5 mm to 10 mm
• Left-hand orientation for use in designated left-hand Nikcole Mini-Systems toolholders
• SG chip breaker geometry supports chip control during grooving passes
• Screw-clamp holding method ensures secure, repeatable insert positioning
• ISO 9001 certified manufacturing for consistent dimensional and quality standards

Compatibility

Designed for use with compatible left-hand toolholders in the Nikcole Mini-Systems series, style GIE-7-SG-1.1 L. Confirm toolholder compatibility with the insert style and size code GIE 7SG11 before installation.

Installation Notes

Insert seating and replacement should be performed by a qualified machinist or CNC tooling technician with the machine powered down and the spindle fully stopped. Use the correct torque driver for the screw-clamp fastener per the toolholder manufacturer specifications. Inspect the insert pocket for debris or damage before seating a new insert. Handle solid carbide inserts with care to avoid chipping the cutting edge prior to use.
