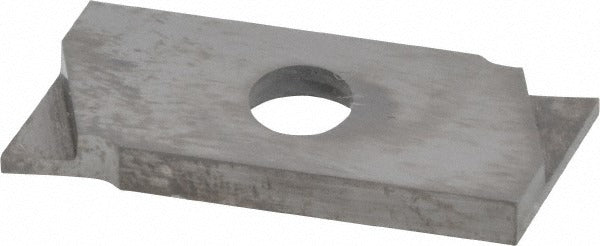

Nikcole Mini-systems GIE7SG0.8R C2 Grooving Insert Solid Carbide

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG0.8R C2 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It features a 0.8 mm cutting width and a maximum depth of cut of 2.54 mm, making it well suited for fine, controlled groove profiles in tight tolerances. The C2 carbide grade provides the hardness and wear resistance required for consistent performance in general-purpose turning applications. Installation is performed via screw-holding method, and the insert carries an SG chip breaker geometry. Machinists and CNC tool setters working in production or job-shop environments are the primary users of this insert.

This insert is appropriate for grooving and profiling operations on lathes and turning machines where precise groove width and depth control are required. The right-hand cutting orientation suits standard external grooving setups. With an overall length of 17.00 mm and a cutting height of 7.00 mm, it fits toolholders designed for the GIE insert style within the Nikcole Mini-Systems series. It is suited for both short-run and production machining where dimensional repeatability is critical.

Key Features

• Solid carbide construction for hardness and extended edge life
• 0.8 mm cutting width for fine grooving applications
• Maximum depth of cut of 2.54 mm, with a depth range of 2.00 to 3.00 mm
• Right-hand cutting orientation for standard external grooving setups
• SG chip breaker geometry for controlled chip evacuation
• Screw-holding method for secure, repeatable insert seating
• ISO 9001 certified manufacturing

Compatibility

Designed for use with GIE-style toolholders in the Nikcole Mini-Systems series. Confirm toolholder compatibility with the GIE7SG insert style and screw-clamp holding method before installation.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before handling cutting inserts. Use the correct torx or hex key to seat the clamping screw to the toolholder manufacturer's specification. Inspect the insert pocket for debris or wear before seating a new insert to ensure proper contact and alignment.
