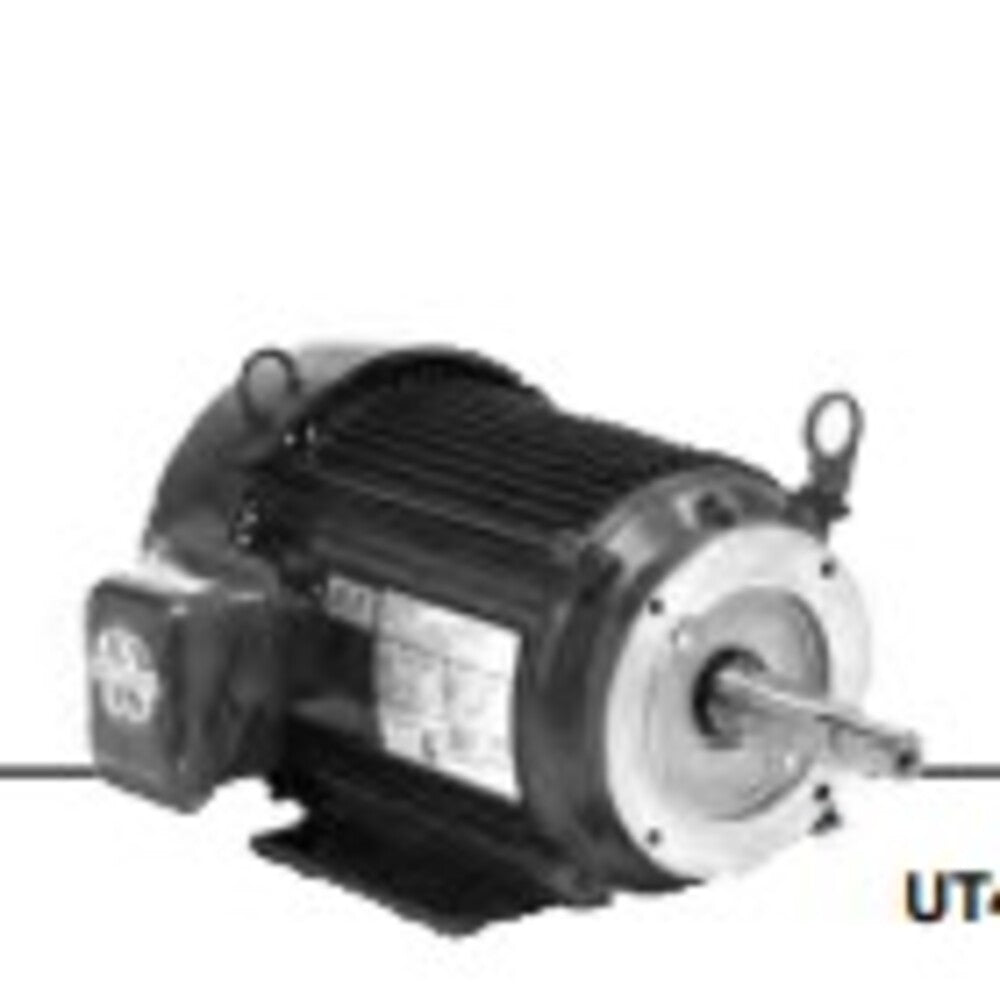

US-Nidec UJ32P2DM Close Coupled Pump Motor 1 1/2 HP 208-230/460V

Product Description

The US-Nidec UJ32P2DM Close Coupled Pump Motor is designed for a variety of pumping applications. It is a reliable option for professionals working with complex mechanical systems. Featuring a rolled steel frame, this motor ensures durability and performance efficiency.

• Three-phase electrical type
• 1 1/2 horsepower
• TEFC enclosure for safety

Product Highlights

This US-Nidec pump motor is built for three-phase electrical systems, providing 1 1/2 horsepower to handle demanding tasks. The motor features a TEFC enclosure for added protection.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: UJ32P2DM
• Product Type: Close Coupled Pump Motor
• Weight:

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1 1/2
• Frame: 145JM
• Enclosure: TEFC
• Voltage: 208-230/460
• Rotation: REV
• Material: Rolled Steel
• Shaft Type: Single
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2Z-J/C3 / 6206-2Z-J/C3
• Service Factor: 1.15
• Amperage: 4.5-4.3/2.1
• Efficiency: 86.50%
• Insulation Class: F
• Mounting Type: C-Face / Footed
• C Dimension: 15.300
