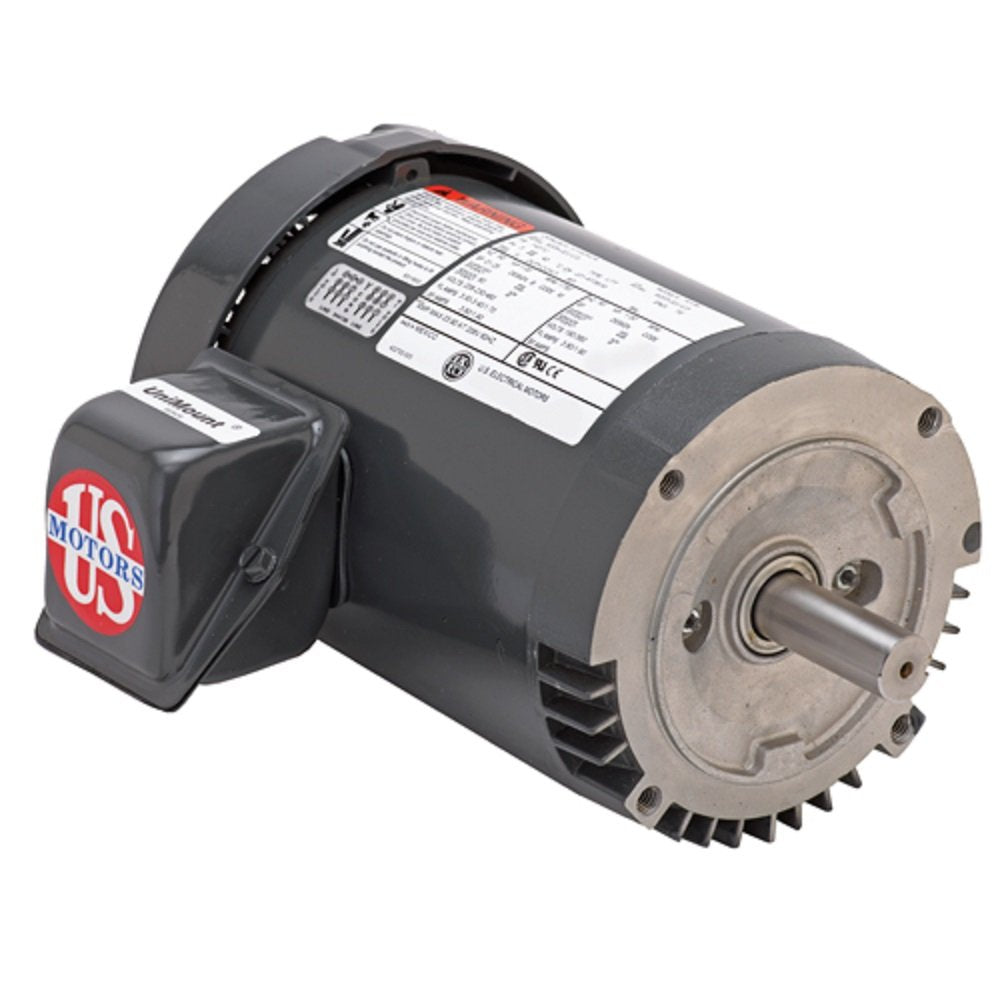

US Motors U1P2DFCR General Purpose Motor 1 HP 1800 RPM 208-230/460 Volt 56C Frame

Product Description

The US Motors U1P2DFCR is a three-phase electric motor with a power rating of one horsepower and a speed of one thousand eight hundred RPM. This motor is designed for use in general industrial equipment, making it suitable for various applications, including fans, blowers, compressors, and pumps. It operates at a voltage of two hundred eight to two hundred thirty or four hundred sixty volts, and features a C-Face footless mounting style, allowing for easy installation and versatility.

• Power: 1 HP
• Speed: 1800 RPM
• Mounting: C-Face / Footless

Product Highlights

This motor is built from rolled steel and features a TEFC (Totally Enclosed Fan Cooled) enclosure, which enhances durability and protects against dust and moisture. It is equipped with ball bearings for smooth operation and has a high efficiency rating of eighty-five point five percent. The U1P2DFCR is suitable for continuous operation and is designed to meet a variety of industrial needs.

Product Information

Standard Information

• Brand: US Motors
• Model / MPN: U1P2DFCR

Technical Specifications

• Horsepower: 1
• RPM: 1800
• Voltage: 208-230/460
• Frame Size: 56
• Phase: Three
• Enclosure Type: TEFC
• Amperage: 3.1-3/1.5
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footless
