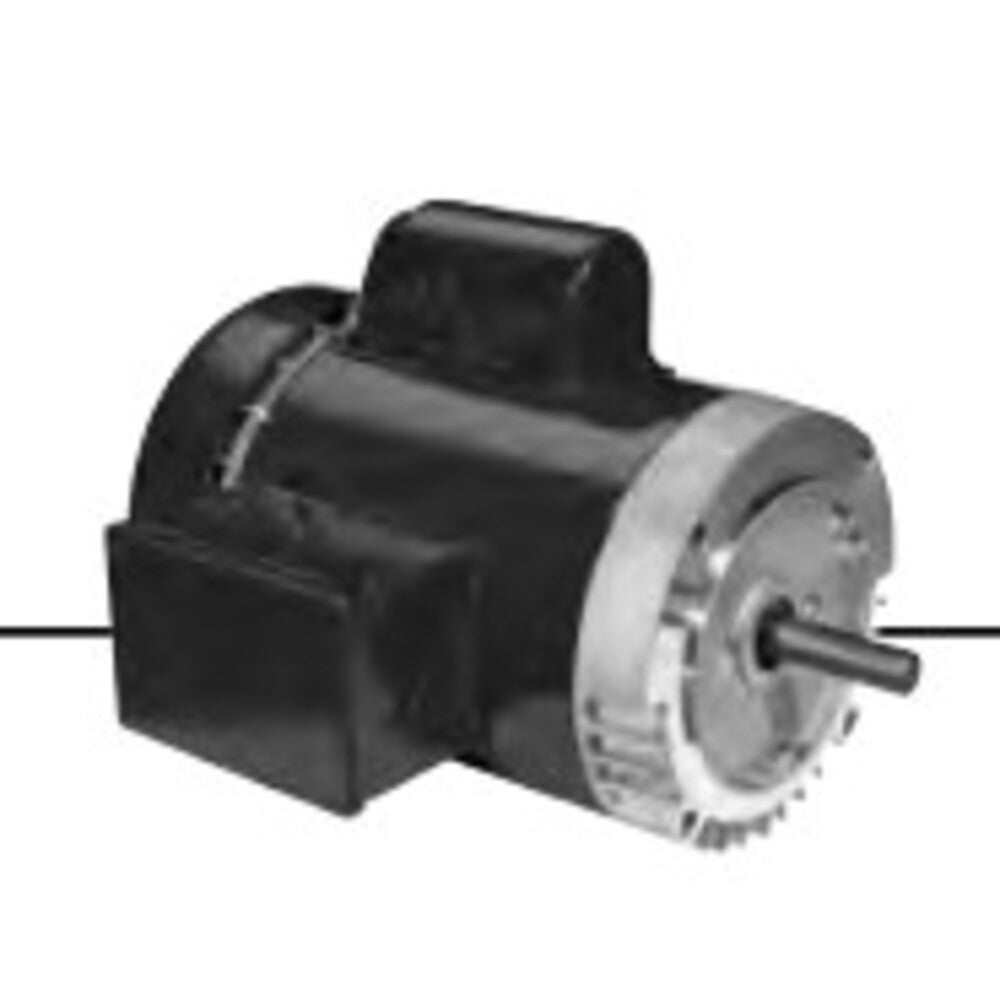

U.S. Motors T34C2ZCR Electric Motor 3/4 HP 1-Phase 1725 RPM TEFC

Product Description

U.S. Motors T34C2ZCR is a general-purpose electric motor suitable for various applications. It operates at 3/4 HP and features a 1-phase setup with a speed of 1725 RPM.

• TEFC (Totally Enclosed Fan Cooled) enclosure
• Single-phase motor
• Voltage compatibility of 100-120/200-240

Product Highlights

This electric motor is built to offer reliable performance in a range of mechanical and industrial applications. Key features include a 3/4 HP output, ball bearings, and a rolled steel body.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T34C2ZCR

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 3/4 HP
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 100-120/200-240
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: C-Face / Footless
• Amperage: 9.2-8.4/4.6-4.2
• Shaft Type: Single
