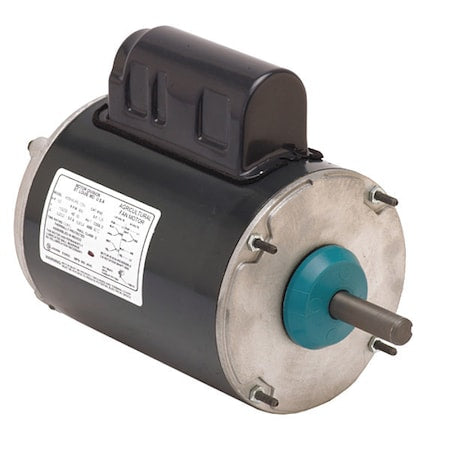

Nidec FD12AA4P Farm Duty Motor 1/2 HP PSC 900 RPM 115/230V 56Z Frame

Product Description

The Nidec FD12AA4P Farm Duty Motor is a reliable and efficient motor designed for a wide range of farm and industrial applications. With 1/2 horsepower, this motor is built to handle demanding environments.

• Item: Farm Duty Motor
• Motor Type: PSC
• HP: 1/2
• Nameplate RPM: 900
• Voltage: 115/230

Product Highlights

This 1/2 HP motor operates at 900 RPM and runs on a 115/230V power supply. It has a 56Z frame, making it durable and long-lasting. The motor is perfect for powering various farm equipment and industrial machinery.

Product Information

Standard Information

• Brand: Nidec-US Motors
• MPN: FD12AA4P

Technical Specifications

• Electrical Type: PSC
• HP: 1/2
• RPM: 900
• Frame: 56Z
• Diameter: 6.5 inches
• Enclosure: TEAO
• Phase: Single
• Voltage: 115/230
• Rotation: REV
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting: Rigid Base
• Amperage: 6.4/3.2
• Insulation Class: B
• Service Factor: 1
• Frame Size: 56
• Frame Suffix: Z
• Efficiency: 67.00%
