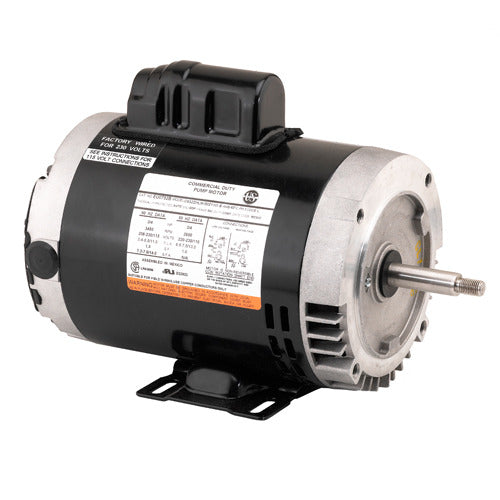

Nidec-US Motors EC2002 General Purpose Single Phase ODP C-Face Motor

Product Description

The Nidec-US Motors EC2002 is a general-purpose motor rated at two horsepower and capable of operating at three thousand six hundred revolutions per minute. This motor is suitable for single-phase applications and comes with an open drip proof enclosure. The versatile design allows for various mounting configurations, making it ideal for different industrial tasks. It can work efficiently in pumps, HVAC systems, and other equipment where reliability is key.

• Two horsepower with a maximum speed of 3600 RPM
• Open drip proof enclosure for better cooling
• Compatible with multiple voltage ratings 115/208-230 volts

Product Highlights

This motor is designed for continuous use with thermal protection and a sturdy build for demanding environments.

Product Information

Standard Information

• Brand: Nidec-US Motors
• MPN: EC2002

Technical Specifications

• Voltage Rating: 115/208-230 volts
• Phase: Single Phase
• HP: 2
• RPM: 3600
• Enclosure: ODP
• Frame Size: 56C
• Full Load Amps: 19.6/10.7-9.8
• Weight: 32.0 lb
