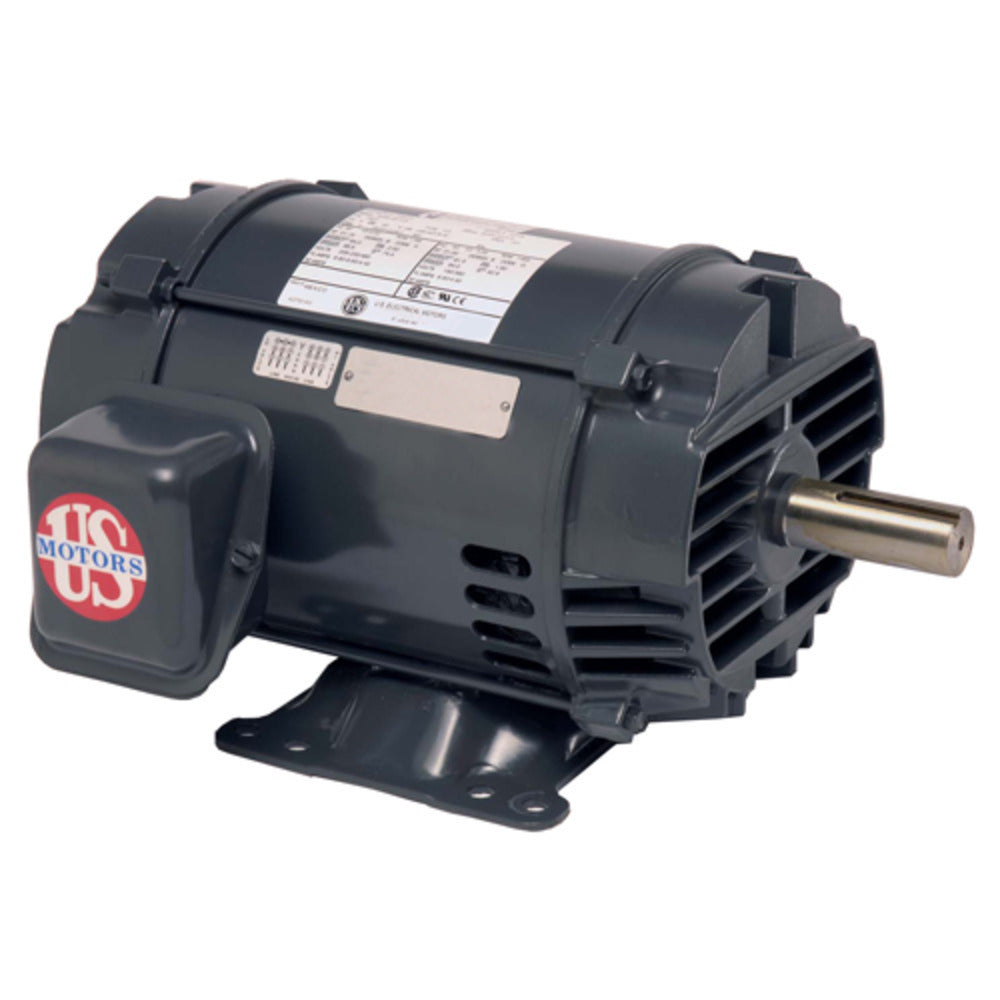

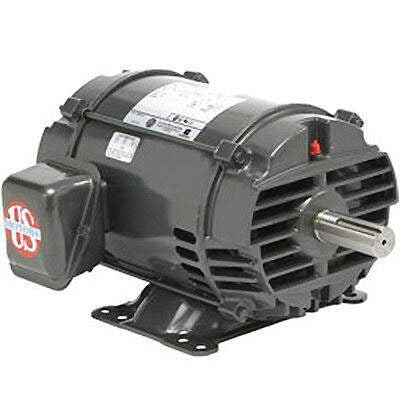

U.S. Motors D5P2D General Purpose Three Phase ODP Horizontal - Footed Motor
U.S. Motors D5P2D General Purpose Three Phase ODP Horizontal - Footed Motor

U.S. Motors D5P2D General Purpose Three Phase ODP Horizontal - Footed Motor

Brand: US MOTORS
SKU: D5P2D
Availability: In Stock
truck-svgrepo-com

Ships via Freight in 3-5 Business Days
$557.32
$557.32
LTL Delivery

This product weighs 105 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The U.S. Motors D5P2D is a general-purpose three-phase motor designed for various industrial applications. This motor provides reliable performance and is suitable for use in pumps, fans, compressors, and material handling equipment. It operates at 5 horsepower and reaches a speed of 1800 revolutions per minute.

  • Power Supply: 208-230/460 volts
  • RPM: 1800
  • Enclosure Type: Open Drip Proof (ODP)

Product Highlights

The D5P2D motor is engineered with a rolled steel frame and meets high standards of efficiency and durability. It features a continuous duty cycle and is designed for easy installation in horizontal footed applications.

Product Information

Standard Information

  • Brand: U.S. Motors
  • Frame Size: 184T

Technical Specifications

  • Horsepower: 5 HP
  • Phase: Three Phase
  • Poles: 4
  • Voltage Rating: 208-230/460
  • Full Load Amps: 13.7-12.4/6.2
  • Duty: Continuous Duty
  • Service Factor: 1.15
  • Weight: 60.0 pounds
  • Frequency: 50/60 Hz
