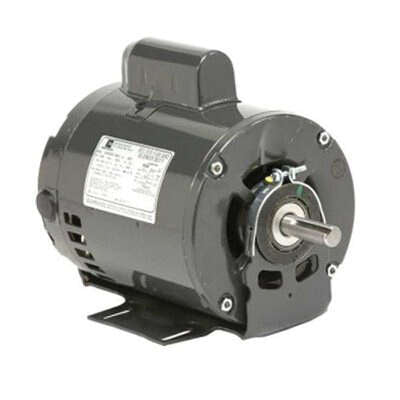

U.S. Motors D32CPA2PH9 General Purpose Single Phase ODP Resilient Motor

Product Description

The U.S. Motors D32CPA2PH9 is a general purpose, single phase motor designed for a variety of applications. This motor operates at one and one-half horsepower and runs at 1725 RPM. It has a voltage rating of 115/230 volts and features a resilient mount setup for effective vibration isolation.

• Compact, robust design suitable for industrial applications
• Operates at 1800 RPM for reliable performance
• Resilient mounting reduces noise and vibration

Product Highlights

This electric motor is built for continuous duty and is ideal for use in air compressors, pumps, and conveyors.

Product Information

Standard Information

• MPN: D32CPA2PH9
• Brand: U.S. Motors

Technical Specifications

• Service Factor: 1.15
• RPM: 1800
• Enclosure: ODP (Open Drip Proof)
• Full Load Efficiency: 83.8%
• Voltage Rating: 115/230
• Poles: 4
• Thermal Protection: Automatic Reset
• Full Load Amps: 13.4/6.7
• Frame: 56H
• Insulation Class: B
• Weight: 41.0 LB
• C Dimension: 12.2 in
