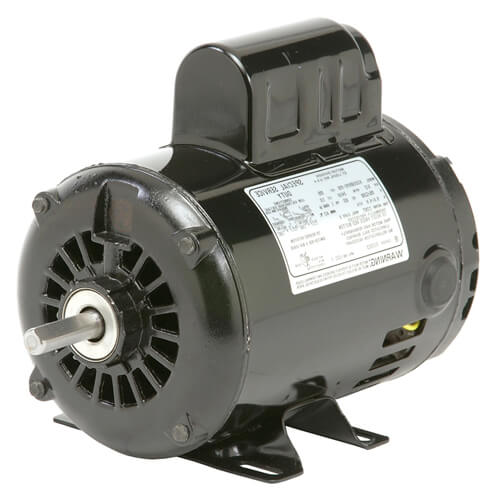

Nidec-US Motors D1CP2PH 1HP 115/230V 1725RPM 56H Frame Capacitor-Start Motor

Product Description

The Nidec-US Motors D1CP2PH motor is a dependable motor designed for various industrial applications. With a power rating of 1HP, this motor operates on 115/230V and delivers a speed of 1725RPM. It features a 56H frame and is built with durable materials to ensure long-lasting performance.

• 1HP power rating
• 115/230V voltage
• 1725RPM speed

Product Highlights

This Nidec-US Motors D1CP2PH motor is suitable for pumps, fans, compressors, and other industrial machinery. Its sturdy construction and reliable performance make it an excellent choice for demanding applications.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Item Number: D1CP2PH

Technical Specifications

• Power Rating: 1HP
• Voltage: 115/230V
• Speed: 1725RPM
• Frame: 56H
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Bearings: Ball
• Mounting Type: Rigid Base
• Ambient Temperature: 40 degrees Celsius
• Shaft Rotation: Reversible (CW/CCW)
• Service Factor: 1.15
• Insulation Class: B
• Full Load Amps: 8.8/4.4
• Duty: Continuous
• Motor Design: Capacitor-Start
