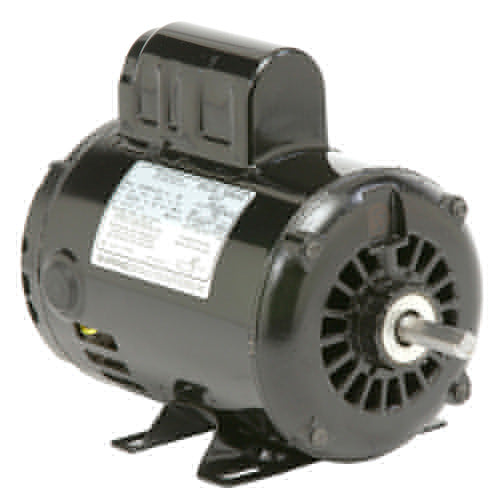

Nidec-US Motors D12CPA2P 1/2 HP 115/230V 1725 RPM Motor

Product Description

The Nidec-US Motors D12CPA2P is a versatile 1/2 HP motor designed for various industrial applications. With its 115/230V dual voltage capability and 1725 RPM speed, it is suitable for powering machinery and equipment requiring continuous operation and high torque.

• 1/2 horsepower
• 115/230V capability
• 1725 RPM

Product Highlights

Engineered with a robust cast iron frame and aluminum housing, the D12CPA2P ensures durability and resistance to corrosion. It is compact, easy to integrate into systems, and requires minimal maintenance.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Item Number: D12CPA2P

Technical Specifications

• Electrical Type: Capacitor Start / Capacitor Run
• HP: 1/2
• Voltage: 115/230
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Open Drip Proof (ODP)
• Phase: Single
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
• Amperage: 5.0/2.6
• Service Factor: 1.25
• Efficiency: 76.20%
• Frequency: 60 HZ
• Insulation Class: F
• Locked Rotor Amps: 42.83
• Locked Rotor Torque: 112.30 OZ/FT
• Breakdown Torque: 67.48 OZ/FT
• Full Load Amps: 5.0/2.6
• Nominal Efficiency: 79%
• Max. Ambient Temp: 40 Degrees C
• Overall Length: 10 7/8 inches
• Length Less Shaft: 9 inches
• Shaft Dia.: 5/8 inches
• Shaft Length: 1 7/8 inches
• Duty Cycle: Continuous
• Motor Frame Material: Steel
• Motor Service Factor: 1.25
• Motor Shaft Rotation: CW/CCW
• Motor Enclosure Design: Open Air-Over
• Motor Mounting Position: All Angle
• Motor Thermal Protection: Auto
