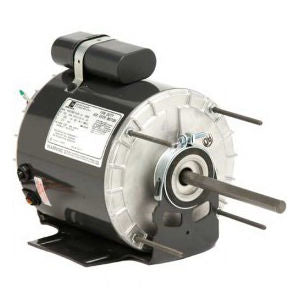

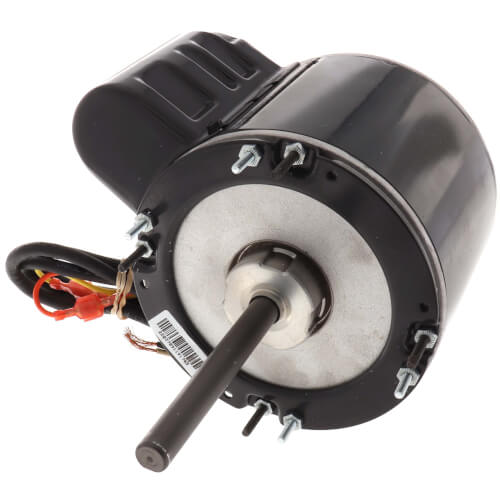

Nidec-US Motors 9034 1/6hp 115v1ph 1075rpm 48Y TEAO | Nidec-US Motors

Product Description

The Nidec-US Motors 9034 is a 1/6 horsepower electric motor designed for industrial uses. It operates at 1075 RPM and is known for its reliability and efficiency.

• 1/6 horsepower
• 1075 RPM
• TEAO enclosure

Product Highlights

Reliable motor for industrial applications. Totally enclosed, fan-cooled design protects from contaminants. Standard 48Y frame size.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Item Number: 9034

Technical Specifications

• Power Rating: 1/6 hp
• Speed: 1075 RPM
• Enclosure Type: Totally Enclosed Air Over (TEAO)
• Voltage Rating: 115 V
• Amperage Rating: 2.6 A
• Frame Size: 48Y
• Capacitor: 4uF at 370V
• Efficiency: 51.1%
• Shaft Size: 1/2 Inch Dia x 2-1/2 Inch L
• Bearing Type: Ball
• Overall Length: 8.15 Inch
• Mounting Type: Stud
• Rotation Type: Reversible
• Insulation Type: Class B
• Frequency Rating: 60 Hz, 1 Phase
• Number of Speeds: 1
• Mounting Position: All Angle
• Temperature Rating: 40 deg C
• Shipping Weight: 11.3 lbs
• Country of Origin: Mexico
