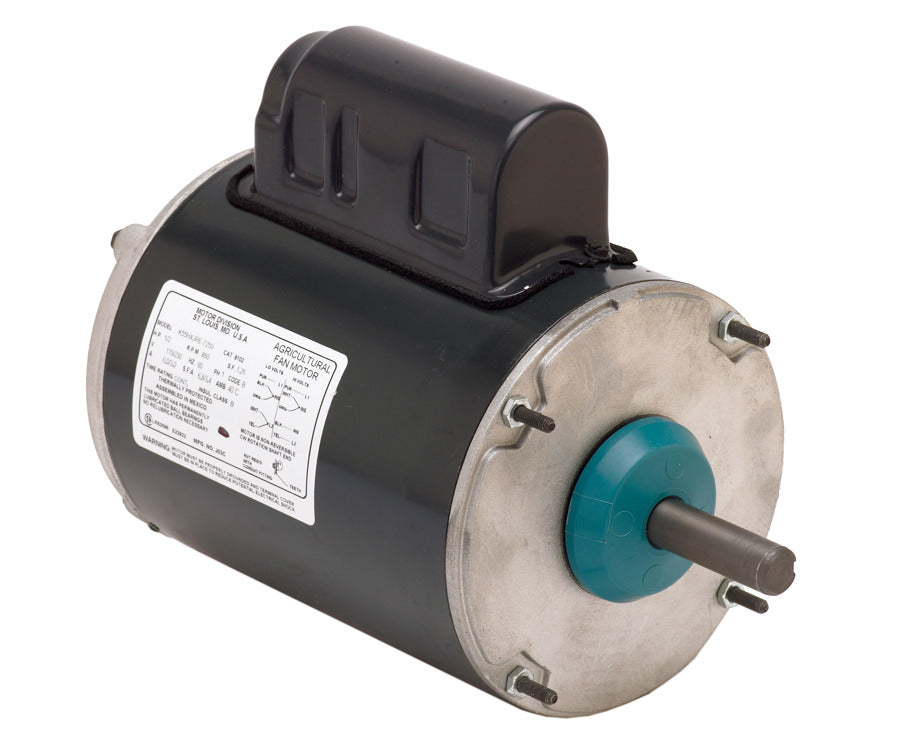

Nidec-US Motors 8102 Direct Drive Motor 1/2hp 115/230v 850rpm

Product Description

The Nidec-US Motors 8102 is a direct drive motor designed for HVAC applications. This motor operates on both one hundred fifteen and two hundred thirty volts and has a power rating of one half horsepower. It runs at eight hundred fifty revolutions per minute, making it suitable for various tasks, including agricultural applications. The motor features a sturdy build with rolled steel construction.

• Voltage: 115/230V
• Horsepower: 1/2 HP
• Speed: 850 RPM

Product Highlights

This motor is ideal for poultry fans and other direct drive applications. It is designed for single-phase use with an automatic overload protector, ensuring safety during operation.

Product Information

Standard Information

• Manufacturer: Nidec-US Motors
• Power: 1/2 HP
• RPM: 850
• Frame: 48YZ
• Weight: 22.14 lbs

Technical Specifications

• Electrical Type: PSC
• Phase: Single
• Enclosure Type: TEAO
• Diameter: 5.6 inches
• Amperage: 6.0/3.0
• Shaft Type: Single
• Mounting: Stud
• Capacitor Run MFD: 30.00 MFD
