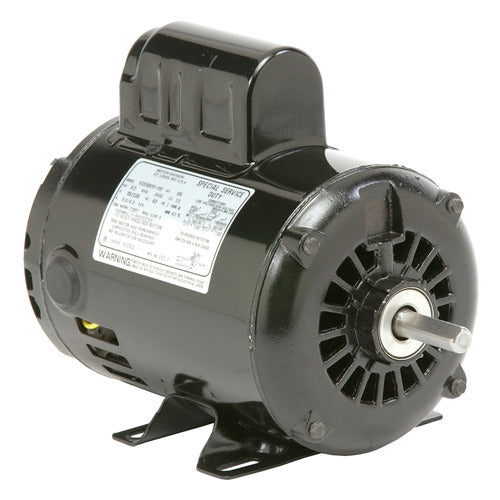

Nidec-US Motors EB384 5 HP Air Compressor Motor 230V 1PH 3450 RPM

Product Description

The Nidec-US Motors EB384 5 HP motor is designed for industrial air compressor applications. It operates at 230 volts single phase, delivering 3450 RPM for efficient performance.

• 5 horsepower motor
• 230 volts single phase
• 3450 RPM speed

Product Highlights

High-performance motor suitable for demanding industrial environments. Constructed with a rolled steel frame, this motor ensures durability and longevity. The manual overload protection adds to its safe operation.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Part Number: EB384

Technical Specifications

• Electrical Type: Cap Start
• HP: 5
• RPM: 3600
• Frame: 56HZ
• Diameter: 6.5
• Enclosure: ODP
• Phase: Single
• Voltage: 230
• Rotation: CCWSE
• Overload Protection: Manual
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6205
• Mounting: Rigid Base
• Amperage: 21.5
• Shaft Type: Single
• Service Factor: 1.15
