Product Description

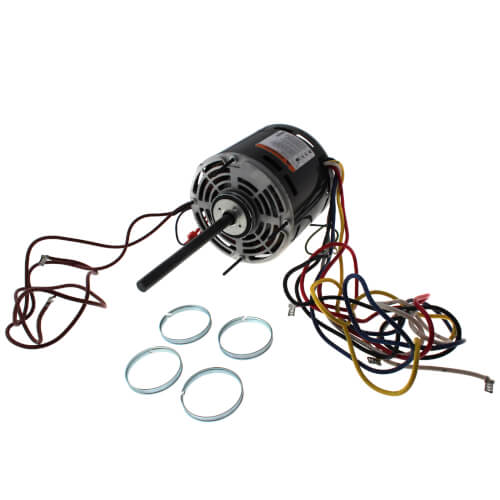

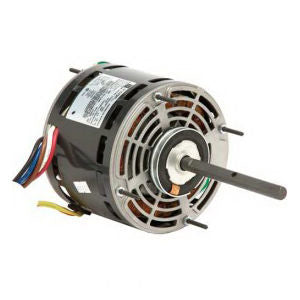

The 5840 from Nidec-US Motors is a 1/2 HP, 4-speed, 115V motor designed for various industrial applications requiring reliable power. The Nidec-US Motors 5840 features a 5.6-inch frame and is built to endure demanding environments.
- Multiple voltage compatibility
- Suitable for high-speed applications
- Compact and rugged design
Product Highlights
Ideal for use in manufacturing, conveying, material handling, and HVAC systems, the Nidec-US Motors 5840 is a dependable choice for your industrial needs.
Product Information
Standard Information
-
Part Number: 5840
-
Brand: Nidec-US Motors
Technical Specifications
-
Power: 1/2 HP
-
Speed: 1075 RPM
-
Voltage: 115 V
-
Frame: 5.6 inches
-
Amperage: 7.1 A
-
Capacitor: 7.5 uF at 370 V
-
Shaft Size: 1/2 inch diameter x 6 inch length
-
Bearing Type: Sleeve
-
Mounting Type: Ring/Stud
-
Insulation Type: Class B
-
Enclosure Type: Open Air Over
-
Rotation Type: Reversible
