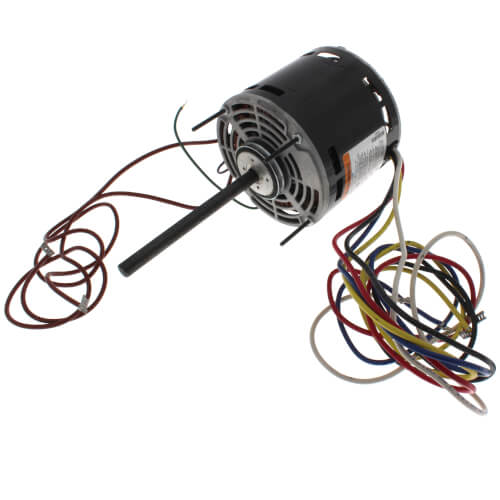

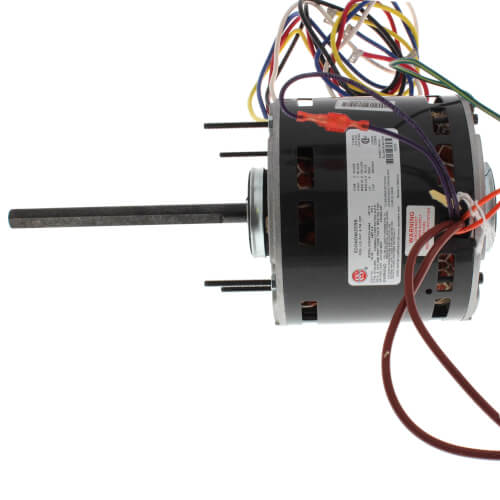

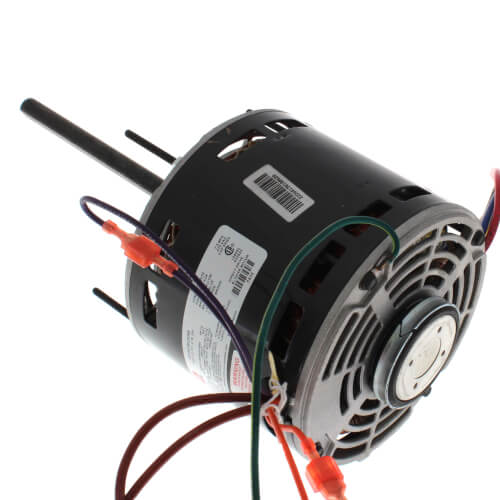

Nidec-US Motors 5835 Motor 1/3hp 1075rpm 115v1ph4spd

Product Description

The Nidec-US Motors 5835 Motor is a robust, 1/3hp, 1075rpm, 115v, single-phase motor designed to meet demanding industrial and HVAC applications. This motor ensures reliable and efficient performance for various direct drive fans and blowers.

• 1/3 horsepower rating
• 1075 RPM speed
• 115 volts with 4 speeds

Product Highlights

This Nidec-US Motors 5835 motor includes a range of features such as reversible rotation, class B insulation, and a continuous duty design. It's built to withstand harsh conditions with automatic reset thermal overload protection and ball bearings providing all-angle thrust.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Item Number: 5835

Technical Specifications

• HP: 1/3
• Voltage: 115V AC
• RPM: 1075
• Phase: 1
• Speeds: 4
• Frame: 48Y
• Amperage: 4.6
• Rotation: Reversible
• Enclosure Type: Open Air Over
• Duty: Continuous
• Ins. Class: B
• Shaft Dia.: 1/2 inch
• Motor Thermal Protection: Auto
• Motor Mounting Type: Ring/Stud
• Overall Length: 11 7/8 inch
