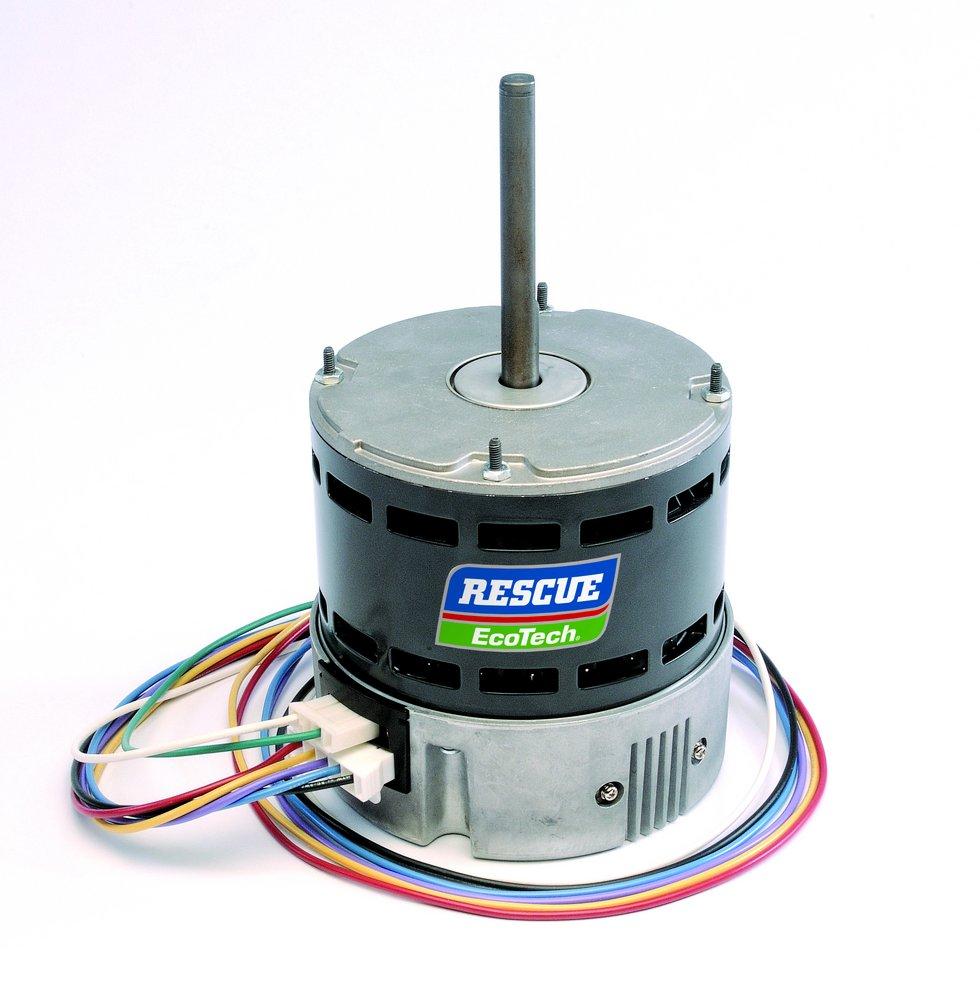

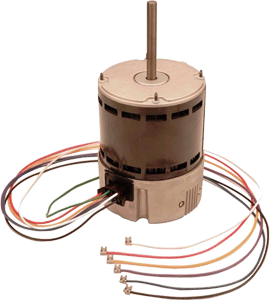

U.S. Motors 5552ET HVAC Single Phase OAO Belly Band Motor 1 HP 115/208-230V

Product Description

The U.S. Motors 5552ET is an HVAC single phase OAO belly band motor. It delivers one horsepower with a speed of seven hundred twenty RPM, making it suitable for various HVAC applications. The motor operates at a voltage rating of one hundred fifteen to two hundred thirty volts. This unit is built to meet the demands of heating and cooling systems.

• Single phase operation
• OAO (Open Air Over) enclosure
• Continuous duty rated

Product Highlights

This motor provides high efficiency for HVAC systems, ensuring reliable performance and durability.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 5552ET

Technical Specifications

• Horsepower: 1 HP
• Voltage Rating: 115/208-230 V
• RPM: 720 RPM
• Frame Size: 48Y
• Phase: Single Phase
• Duty Cycle: Continuous Duty
• Enclosure Designation: OAO - Open Air Over
• Mounting Type: Belly Band
• Full Load Amps: 11/8-7 & 11.9/7.7-6.8
• Thermal Protection: Electronically Protected
• Insulation Class: B
• Weight: 18.29 lb
• EAN or UPC: 786382099084
