U.S. Motors 5464 | HVAC Single Phase TEAO Stud Motor | 1/3-1/6 hp | 825 RPM | 208/230 Voltage Rating

Product Description

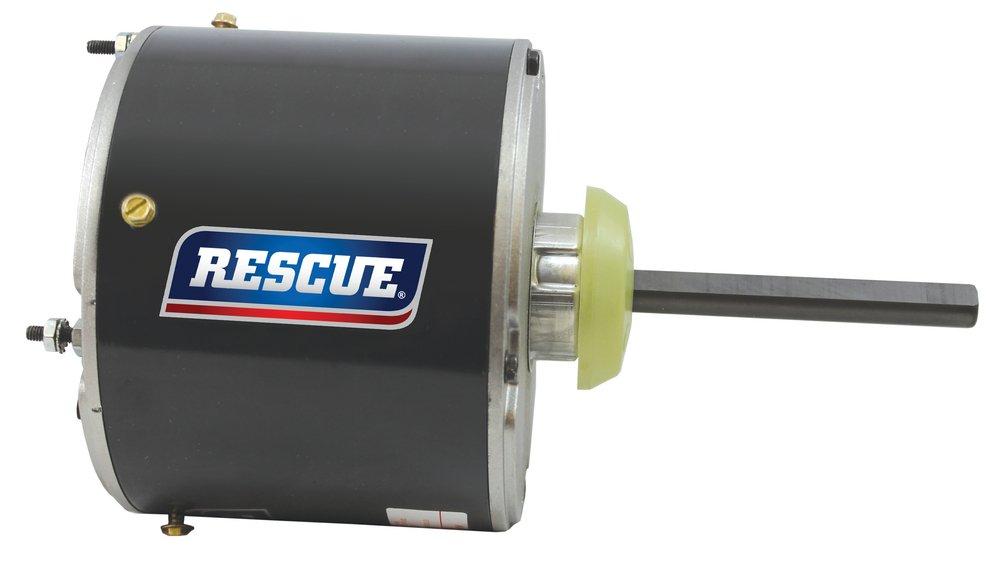

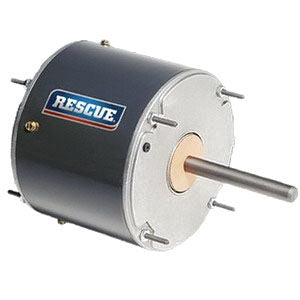

The U.S. Motors 5464 is an HVAC Single Phase TEAO Stud Motor with a horsepower range of 1/3 to 1/6. This motor operates at a speed of 825 RPM and is designed for use in various HVAC applications. It features a totally enclosed air-over (TEAO) design and is suitable for steady, continuous duty operation.

• 1/3 to 1/6 horsepower
• Frequency of sixty Hertz
• Voltage rating of 208 to 230 volts

Product Highlights

This motor supports efficient operation in heating and cooling systems. Ideal for condenser fan applications, it ensures durability and reliability in demanding environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 5464

Technical Specifications

• Full Load Amps: 1.9/1.2
• Duty: Continuous Duty
• Insulation Class: B
• Service Factor: 1
• Frame Size: 48Y
• Mounting Type: Stud
• Phase: Single Phase
• Weight: 18.0 lb
• Voltage: 208-230 VAC
• RPM: 825
• Type: Permanent Split Capacitor
• Thermal Protection: Automatic Reset
• Poles: 8
