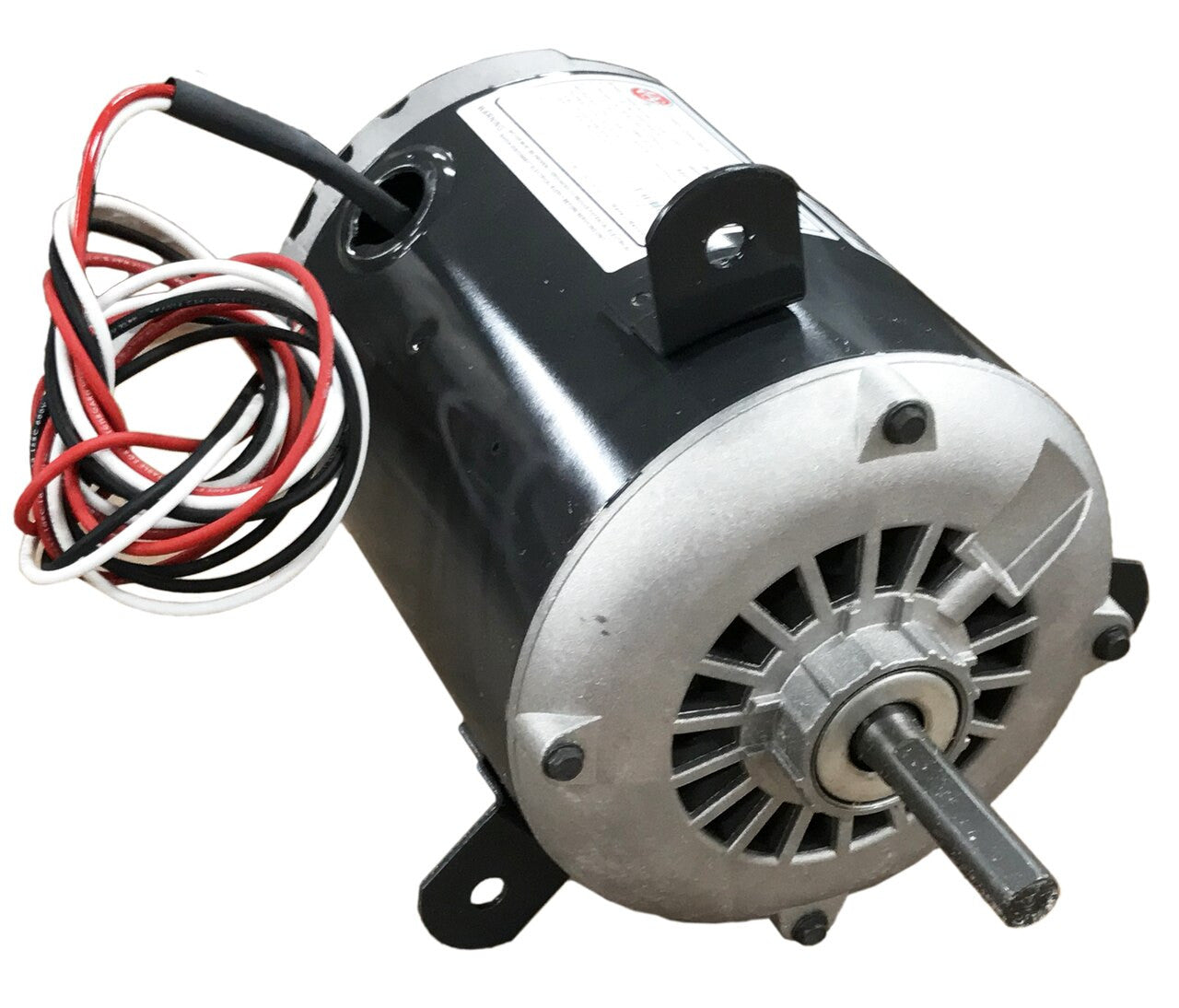

U.S. Motors 2387 Motor 1/3HP 1400/1600RPM 380/460V

Product Description

The U.S. Motors 2387 is a motor designed for HVAC applications. It delivers reliable power at one-third of a horsepower with a dual speed of fourteen hundred and sixteen hundred RPM. It operates on three-phase electricity and works efficiently at both three hundred eighty and four hundred sixty volts.

• Powerful performance with 1/3 horsepower
• Designed for condenser fan applications
• Reversible shaft rotation for versatile installation

Product Highlights

This motor is suitable for OEM replacement in commercial condenser fan systems and features an open air-over design.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 2387

Technical Specifications

• HP: 1/3 HP
• Hz: 60/50 Hz
• Voltage: 380/460V
• Body Diameter: 5.6 inches
• Shaft Diameter: 1/2 inches
• Application: Condenser Fan
• Motor Design: Polyphase
• Nameplate RPM: 1400/1600 rpm
• No. of Speeds: 1
• Full Load Amps: 1A
• Motor Bearings: Ball
• Number of Shafts: 1
• Motor Application: OEM Replacement
• Motor Shaft Rotation: Reversible
• Motor Sub Application: Commercial Condenser Fan Motor
• Motor Enclosure Design: Open Air-Over
• Manufacturers Warranty Length: 1 year
• Country of Origin: Mexico
