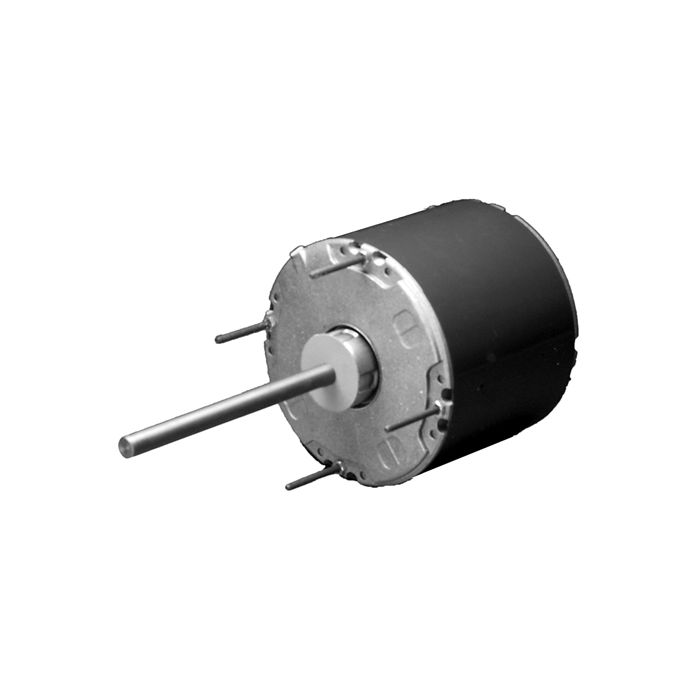

Us Motors 2203 PSC Commercial Condenser Fan Motor 1 HP 1075 RPM

Product Description

The US Motors 2203 PSC (Permanent Split Capacitor) Commercial Condenser Fan Motor is designed for condenser cooling fans in commercial air conditioning applications. This motor operates at 1075 RPM and delivers 1 HP. It is rated for 208V-230V/460V and has a wattage of 800W.

• Permanent split capacitor
• Reversible rotation
• Automatic reset thermal overload protector

Product Highlights

This US Motors condenser motor is ideal for commercial air conditioning with features like reversible rotation and thermal overload protection.

Product Information

Standard Information

• Brand: US MOTORS
• Manufacturer Part Number: 2203

Technical Specifications

• Catalog#: 2203
• Manufacturer: U.S. Motors
• Amps: 5.5-5.1/2.6
• Bearings: Ball
• Capacitor: 17.5MFD/370VAC
• Enclosure Type: TEAO (Totally Enclosed Air Over)
• Frame: 56Z
• HP: 1
• Hz: 60
• Insulation Class: B
• Manufacturer Model #: K063SYW4625012B
• Maximum Ambient Temperature: 60° C
• Mounting Orientation: All Angle
• Mounting: Hub/Stud
• Number of Speeds: 1
• Phase: 1
• Product Type: PSC (Permanent Split Capacitor)
• Rotation: Reversible
• RPM: 1075
• Service Factor: 1.00
• Thermal Protection: Automatic
• Volts: 460
• Wattage: 800W
• Motor Enclosure: Enclosed
• Kilowatts: 0.8
• Poles: 6
• Shaft Code: Z
• Stator Diameter: 6.3
• Stack: 3.47
• Motor Type: FHP
• NEMA Frame: 56Z
