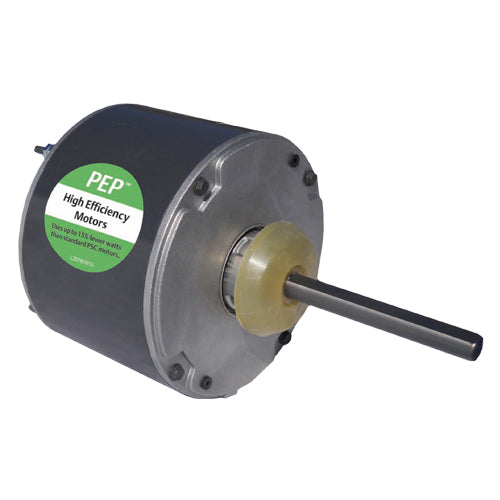

Nidec-US Motors 1862PEP HVAC Single Phase TEAO Stud/Band Motor

Product Description

The Nidec-US Motors 1862PEP is an HVAC single-phase TEAO stud/band motor. This motor operates continuously at a power of one-half horsepower and a speed of 1130 RPM. It is designed for use in various heating, ventilation, and air conditioning applications. The TEAO enclosure ensures protection from dust and moisture while maintaining airflow for cooling.

• Design: TEAO encloses the motor for optimal cooling and protection.
• Mounting: Features a stud/band mount for ease of installation.
• Voltage: Operates at a voltage rating of 208-230 volts with a frequency of 50/60 Hz.

Product Highlights

This motor is suitable for HVAC applications, providing reliable performance and durability.

Product Information

Standard Information

• Brand: Nidec-US Motors
• Voltage Rating: 208-230

Technical Specifications

• RPM: 1200
• Phase: Single Phase
• Duty: Continuous Duty
• Weight: 18.02 LB
• Frame: 48Y
• Full Load Amps: 2.5
• Poles: 6
• Enclosure Designation: TEAO - Totally Enclosed Air Over
• Thermal Protection: Automatic Reset
