Product Description

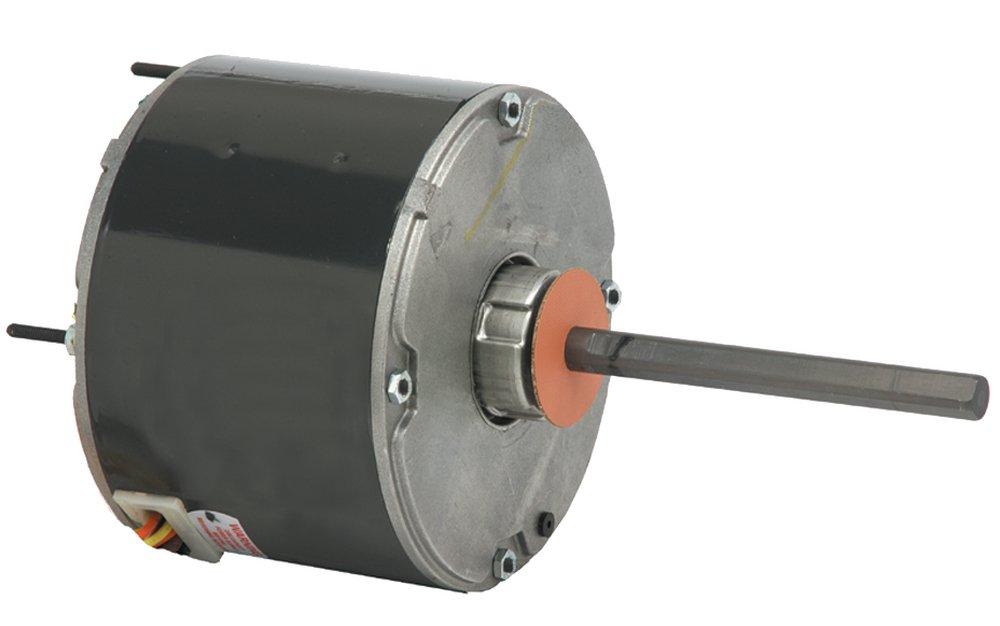

The US Motors 1859 is a 1/6 horsepower condenser fan motor designed for use in residential and commercial applications. It operates at a speed of 1075 RPM and is compatible with voltages from 208 to 230 volts. This motor features a totally enclosed air over enclosure for protection and has a reversible rotation function.
- Hubless lead end for efficient mounting
- Automatic reset thermal overload protector
- Designed for continuous duty operation
Product Highlights
This motor is ideal for use in condensing units and features sleeve bearings for smooth operation. The built-in thermal overload protection helps prevent motor damage during unexpected overloads.
Product Information
Standard Information
-
Manufacturer: Nidec Motor Corporation
-
Availability: In Stock
Technical Specifications
-
Horsepower: 1/6 hp
-
Speed: 1075 RPM
-
Voltage Rating: 208 to 230 V
-
Amperage Rating: 1.0 A
-
Frequency Rating: 60 Hz
-
Rotation: Reversible
-
Bearing Type: Sleeve
-
Enclosure Type: Totally Enclosed Air Over (TEAO)
