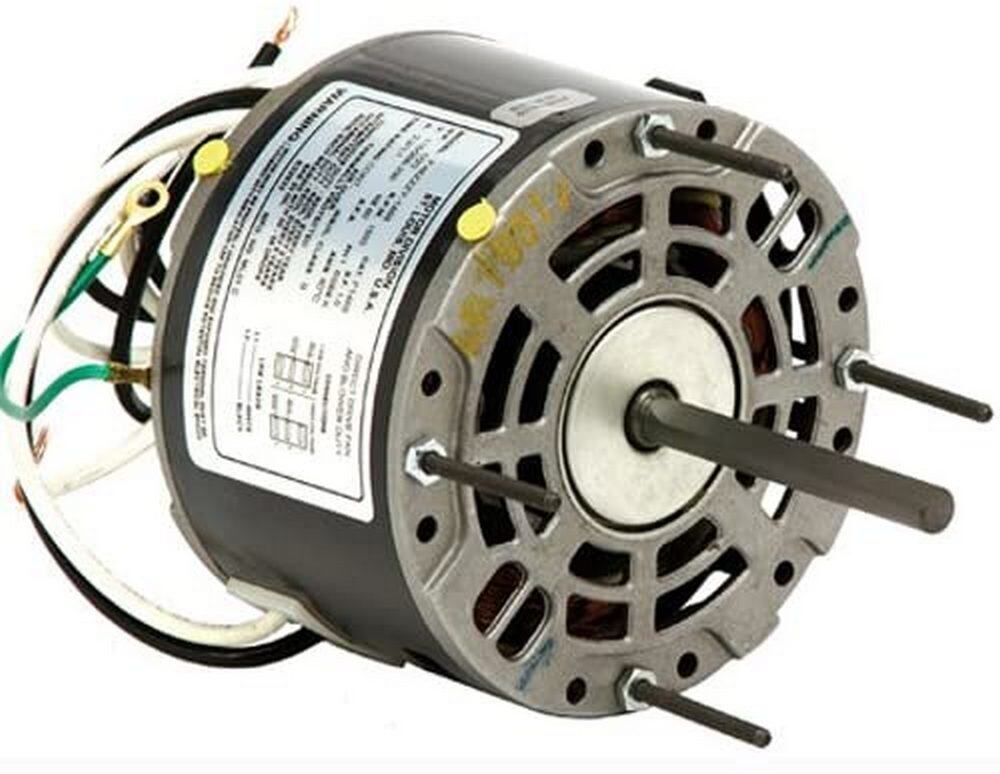

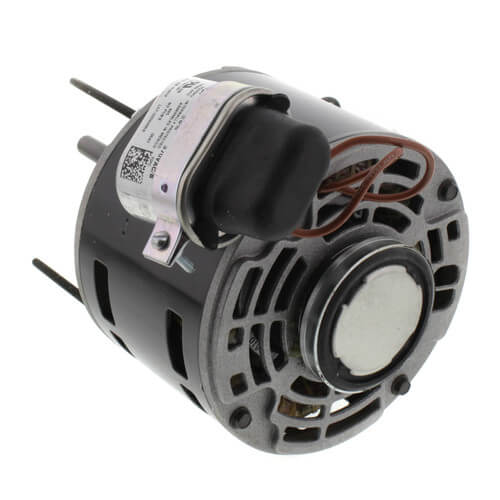

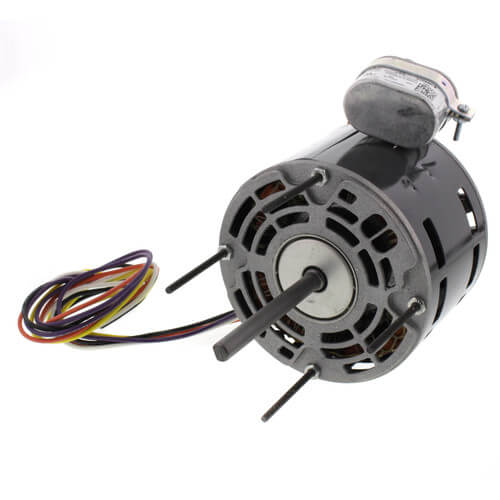

U.S. Motors 1470P HVAC Single Phase ODP Hub/Stud Motor 1/10hp 1550rpm

Product Description

The U.S. Motors 1470P is a HVAC single phase ODP hub/stud motor. This motor provides efficient power for HVAC applications. Operating at one-tenth horsepower and 1550 RPM, it is designed for reliable performance in various settings.

• 1/10 horsepower rating
• Voltage rating of 115/208-230
• Continuous duty rating

Product Highlights

This motor features a hub/stud mount and an open drip proof enclosure, making it suitable for both indoor and outdoor use.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: 1470P

Technical Specifications

• Service Factor: 1
• Poles: 4
• Duty: Continuous Duty
• Voltage Rating: 115/208-230
• Enclosure Designation: ODP - Open Drip Proof
• RPM: 1800
• Insulation: B
• Full Load Amps: 1.7/0.9
• Phase: Single Phase
• Mounting: Hub/Stud
• Motor Application: HVAC
• Frame: 42Y
• Hz: 60
• Enclosure: ODP
• Full Load RPM: 1550
• C Dimension: 7.6 inches
• Thermal Protection: Automatic Reset
• Weight: 8.38 lbs
• EAN or UPC: 786382084820
