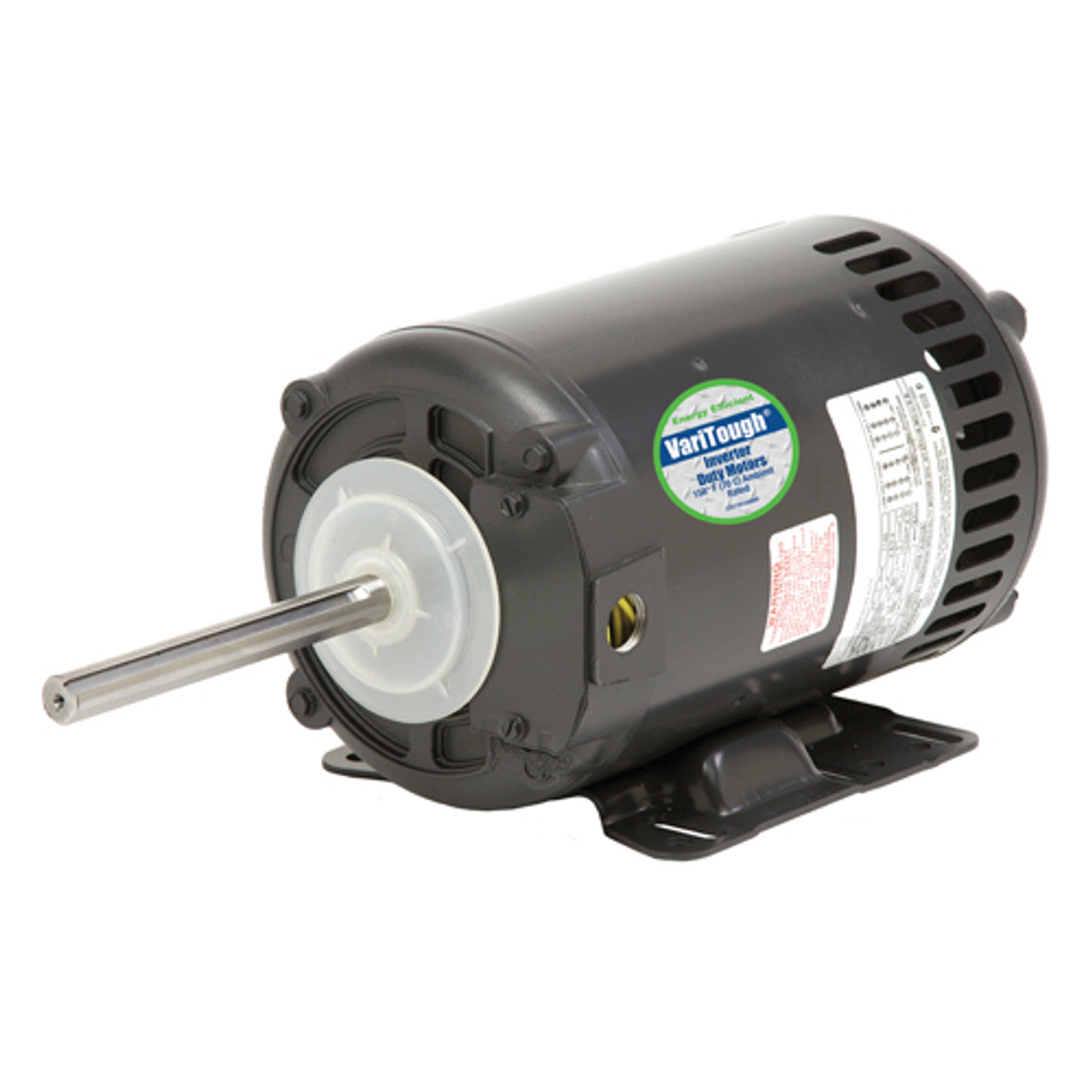

U.S. Motors 1139VG HVAC Three Phase ODP Rigid Base Motor 1/2 hp 230/460

Product Description

The U.S. Motors 1139VG is a three-phase ODP rigid base motor suitable for HVAC applications. This motor operates at one-half horsepower and provides a speed of six hundred RPM. The voltage rating is 230 or 460 volts, allowing versatility in installation.

• Efficiency of 60 percent
• Full load amps of 3.1/1.6
• Rigid base mounting for stability

Product Highlights

The motor is designed for reliable performance in HVAC systems. It features open drip-proof enclosure for protection against moisture and is ideal for various industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• Part #: 110671898
• Availability: Available to Order

Technical Specifications

• Phase: Three Phase
• Voltage Rating: 230/460
• Enclosure: ODP
• Full Load Efficiency: 60 %
• Motor Application: HVAC
• Insulation: F
• Full Load Amps: 3.1/1.6
• RPM: 600 rpm
• Full Load RPM: 575 rpm
• Service Factor: 1
• Enclosure Designation: ODP - Open Drip Proof
• Mounting: Rigid Base
• Hz: 60 Hz
• Poles: 12
• Weight: 44.0 LB
• EAN or UPC: 786382103606
