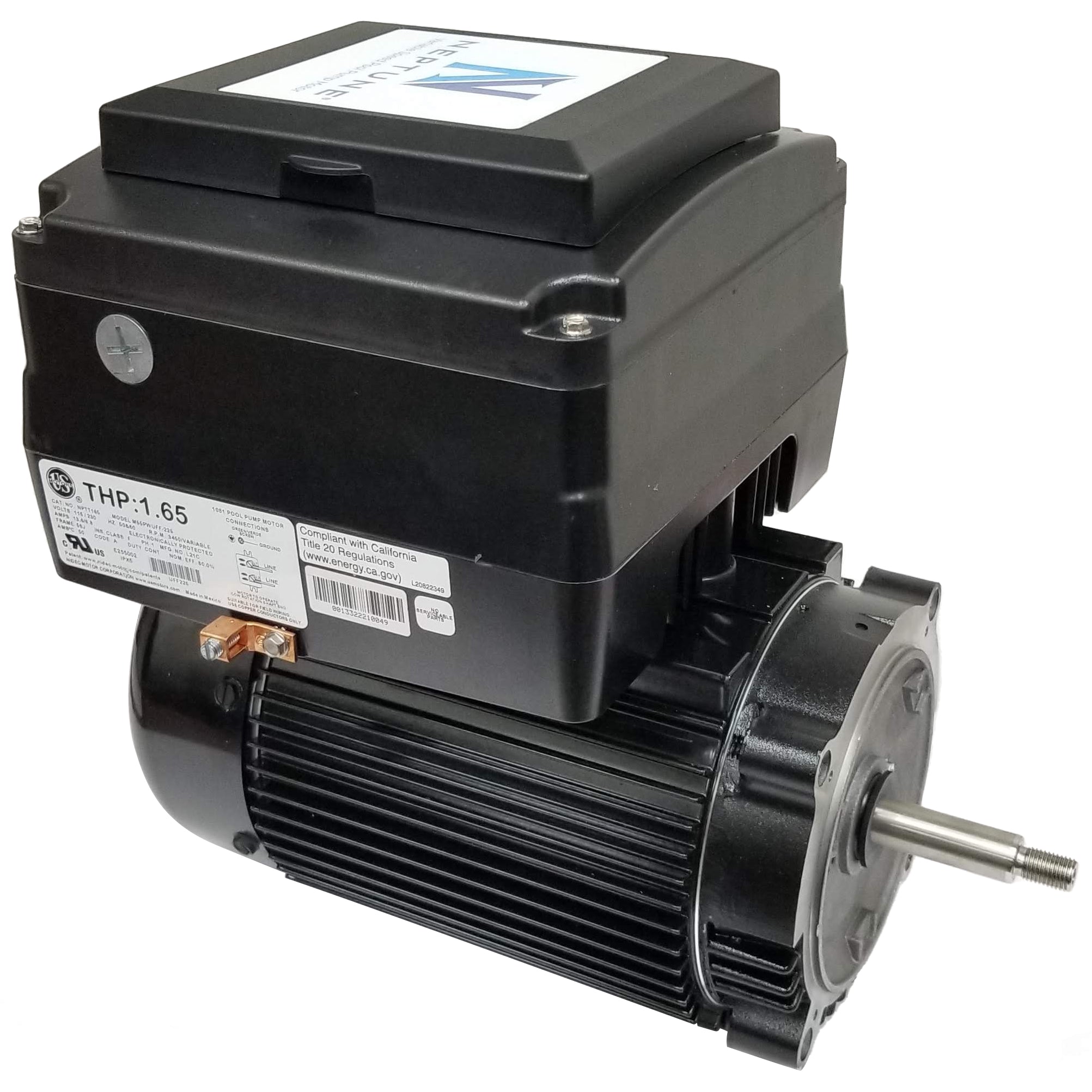

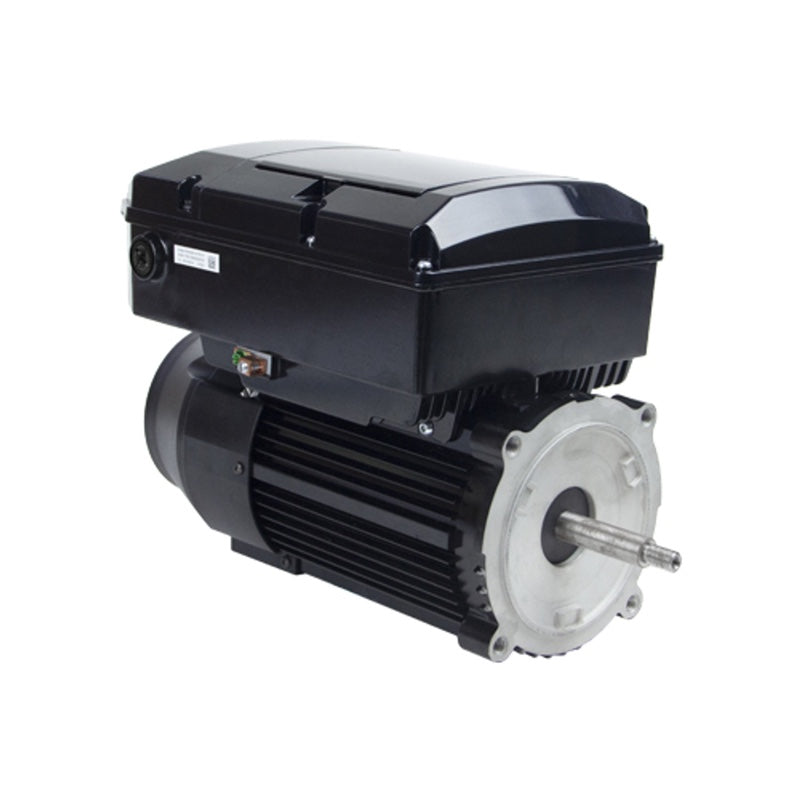

Nidec NPTT165 Neptune 1.65 THP Variable Speed Pool Pump Motor (Single Phase, 50/60 Hz, 115/230V, 3450 RPM)

Product Description

The NIDEC Neptune variable speed pool pump motor NPTT165 is a premium efficient product with a fully integrated motor, control, and user interface. It offers programming flexibility and speed range capability. Designed to communicate and operate with external system controllers and the onboard UI. It has finned aluminum enclosure that provides a water ingress protection level of IPX5.

• Total horsepower (THP) rated, from 1.25THP to 2.70THP
• Single phase input, 50 or 60 Hz
• 1.25THP and 1.65THP models offer dual voltage capability (115/230V)

Product Highlights

The Neptune variable speed motor is easy to install and program. It provides rugged construction for longer life and operates quietly.

Product Information

Standard Information

• Brand: NIDEC
• Manufacturer Part Number: NPTT165

Technical Specifications

• THP: 1.65
• RPM: 600-3450
• Voltage: 115/230V
• Frequency: 50/60 Hz
• SF Amps: 13.6/6.8
• System Efficiency: 81%
• Motor Frame: 56J
• Length Less Shaft: 10.01"
• Power Factor Corrected: Yes
• Part Number: NPTT165
• Motor Horsepower: 1.65 hp
• Synchronous Rpm: 3600 rpm
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Base RPM: 3450 rpm
• Duty Condition Type: Continuous Duty
• Motor Poles: 10
• Model: M055UFF0225013J
