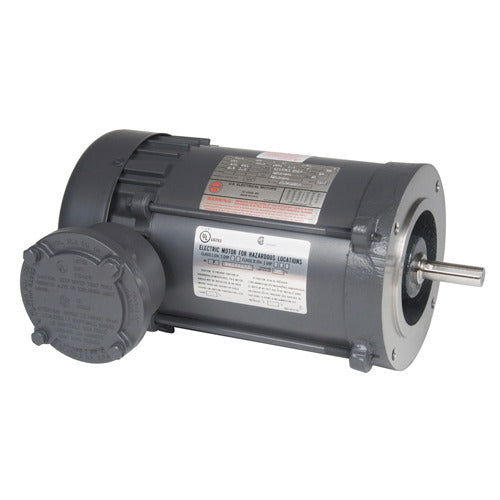

U.S. Motors XS34S1ACR 3/4 HP 3450 RPM Motor

Product Description

The U.S. Motors XS34S1ACR is a three-phase motor designed for hazardous locations. It operates at three-quarter horsepower and has a speed of three thousand four hundred fifty revolutions per minute. This motor is suitable for various applications, including pumps, fans, compressors, and tools located in environments with hazardous conditions.

• Power: 3/4 HP
• Speed: 3450 RPM
• Enclosure: Totally Enclosed Fan-Cooled (TEFC)

Product Highlights

This motor features a robust cast iron design which enhances its durability and heat resistance. It can operate at voltages of 208, 230, and 460 volts, making it versatile for multiple setups.

Product Information

Standard Information

• Manufacturer: U.S. Motors
• Model Number: XS34S1ACR

Technical Specifications

• Electrical Type: Three Phase
• Motor Frame: 56C
• Full Load Amps: 2.7-2.6/1.3
• Ambient Temperature: Max 104 Degrees F
• Service Factor: 1.15
• Insulation Class: B
• Hazardous Location Class: 1 C,D / 2 E,F,G
• Motor Design: 3-Phase
• Nominal Efficiency: 86.5%
