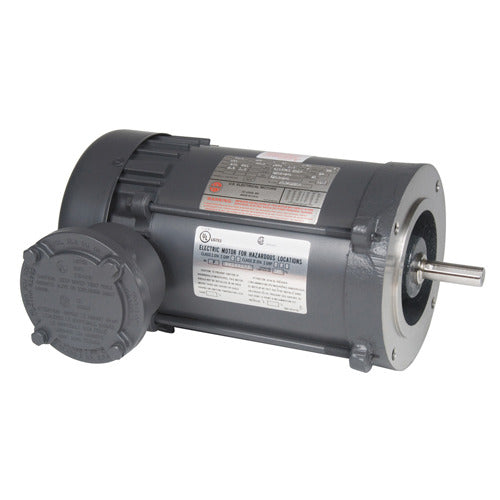

US-Nidec XS1P2ACR Explosion Proof Motor 1 HP 143TC TEFC

Product Description

The US-Nidec XS1P2ACR Explosion Proof Motor is designed for hazardous locations, offering reliable performance for various industrial applications. This 1 horsepower motor features a 143TC frame.

• Three Phase Motor
• 208-230/460 Voltage
• Thermostat Overload Protection

Product Highlights

This explosion-proof motor, model XS1P2ACR by US-Nidec, integrates safety and efficiency. The TEFC enclosure protects against dust and moisture, ensuring durability in hazardous environments.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: XS1P2ACR
• Voltage: 208-230/460V

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1
• Frame: 143TC
• Enclosure: TEFC
• Phase: Three
• Voltage: 208-230/460V
• Rotation: REV
• Overload Protection: Thermostat
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6205
• Mounting: C-Face / Footless
• Amperage: 3.3-3.3/1.6
• Shaft Type: Single
• Efficiency: 85.50%
• Service Factor: 1.15
• Insulation Class: B
• Duty Cycle: Continuous
• Hazardous Location Class: 1 C,D / 2 E,F,G
• Temperature Code: T3C
