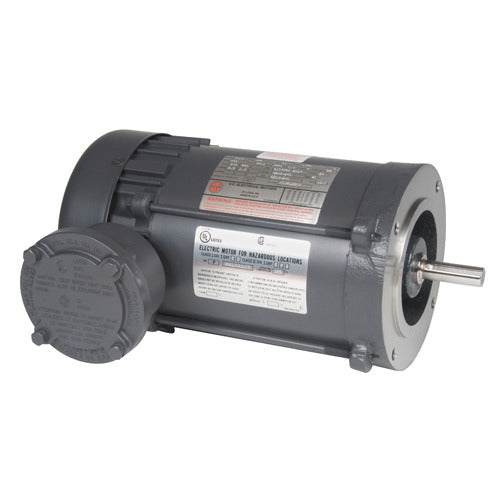

US-Nidec XS1CA2JH Explosion Proof Motor

Product Description

The US-Nidec XS1CA2JH Explosion Proof Motor is designed for challenging environments. This motor features a cap start system and operates at 1 horsepower. It is housed in a 56H frame with a 6.5 diameter.

• Explosion Proof Design
• 1 Horsepower Output
• TEFC Enclosure

Product Highlights

Ideal for hazardous locations, this motor ensures safety and reliability with a cast iron housing and ball bearings. It operates on 115/208-230 volts and has automatic overload protection.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: XS1CA2JH
• UPC: 786382077501
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: Cap Start
• Horsepower: 1
• Frame: 56H
• Diameter: 6.5
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230
• Rotation: REV
• Overload Protection: Auto
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Bearings SE Size: 6203
• Bearings OSE Size: 6203
• Mounting: Rigid Base
• Amperage: 14.0/6.9-7.0
• Shaft Type: Single
• Efficiency: 70.00%
• Insulation Class: B
• Service Factor: 1
• Frame Size: 56
• Frame Suffix: H
