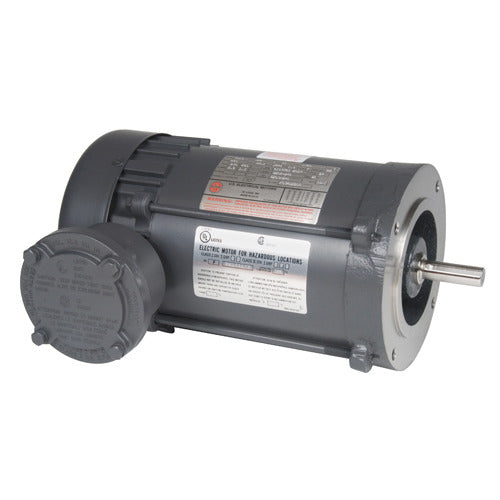

Nidec XS1CA1JCR Hazard C-Face 1 Ph Motor, 1 HP, Split-Phase, 3600 RPM, 115, 208-230V, 56C Frame

Product Description

The Nidec XS1CA1JCR Hazard C-Face 1 Ph Motor is designed for use in hazardous locations. This motor is split-phase, with a horsepower rating of 1 HP, and operates at 3600 RPM. It supports dual voltage, operating at 115, 208-230V, and has a 56C frame. This motor is suitable for air compressors, pumps, conveyors, blowers, and general industrial equipment located in hazardous areas.

• Item: Hazardous Location Motor
• Motor Type: Split-Phase
• HP: 1

Product Highlights

This motor can be used in various hazardous environments, providing consistent and reliable performance.

Product Information

Standard Information

• Brand: Nidec
• MPN: XS1CA1JCR

Technical Specifications

• Electrical Type: Cap Start
• HP: 1
• RPM: 3600
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Single
• Voltage: 115/208-230V
• Rotation: REV
• Overload Protection: Auto
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6205
• Mounting: C-Face / Footless
• Amperage: 12.0/6.3-6.0
• Shaft Type: Single
• Efficiency: 72%
• Insulation Class: B
• Service Factor: 1
• Hazardous Location Class: 1 C,D / 2 E,F,G
