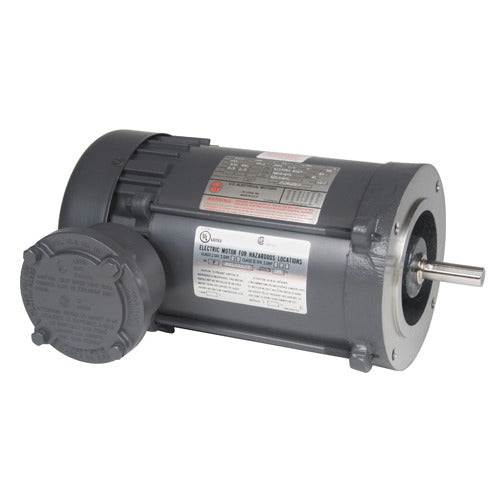

U.S. Motors XS14CA3P Motor, 1/4HP, 1140RPM, 115/230V, 60HZ

Product Description

The U.S. Motors XS14CA3P is a hazardous location motor designed for tough environments. This single-phase motor operates at one-fourth horsepower and has a nameplate RPM of one thousand one hundred forty. With voltage options of one hundred fifteen and two hundred thirty volts AC, it is suitable for various applications.

• Category: Motors -- Definite Purpose AC Motors
• Type: Explosion Proof Motor
• Weight: thirty-four pounds

Product Highlights

This motor features auto thermal protection and is built for continuous duty. The totally enclosed fan-cooled (TEFC) design ensures reliable performance in hazardous locations.

Product Information

Standard Information

• Voltage: One hundred fifteen to two hundred thirty volts AC
• Frame: 56C

Technical Specifications

• Horsepower: One-fourth
• RPM: One thousand one hundred forty
• Full Load Amps: 6.8/3.4
• Insulation Class: B
• Hazardous Location Class: 1 C,D / 2 E,F,G
• Max Ambient Temperature: 40 degrees Celsius
• Shaft Diameter: 5/8 inches
• Duty Cycle: Continuous
