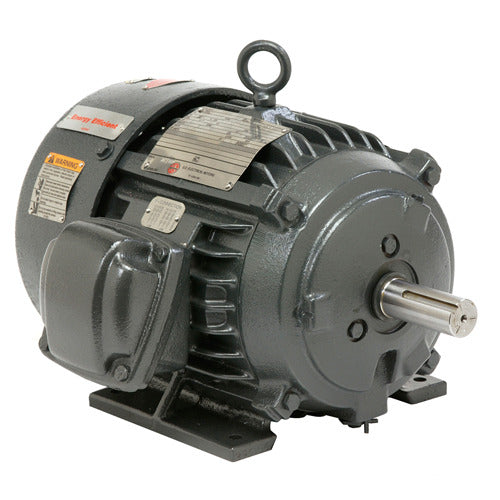

US-Nidec X3P4B Three Phase Explosion Proof Motor 3HP 215T Frame TEFC Enclosure

Product Description

The US-Nidec X3P4B Explosion Proof Motor delivers reliable performance with a power rating of 3 horsepower. This three-phase motor operates at 900 RPM with a 215T frame. Its TEFC (Totally Enclosed Fan Cooled) enclosure ensures safe operation in hazardous environments.

• 3 HP power output
• 900 RPM speed
• 230/460 voltage

Product Highlights

This explosion proof motor is ideal for use in environments where safety and reliability are paramount. It features a cast iron body and ball bearings for durability.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: X3P4B
• Type: Explosion Proof Motor

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 3 HP
• RPM: 900
• Frame: 215T
• Enclosure: TEFC
• Voltage: 230/460
• Amperage: 11.9/5.9
• Material: Cast Iron
• Bearings Type: Ball / Ball
• Bearings Size: 6206-J/C3 / 6208-J/C3
• Mounting: Rigid Base
• Efficiency: 85.50%
• Insulation Class: F
• Service Factor: 1
