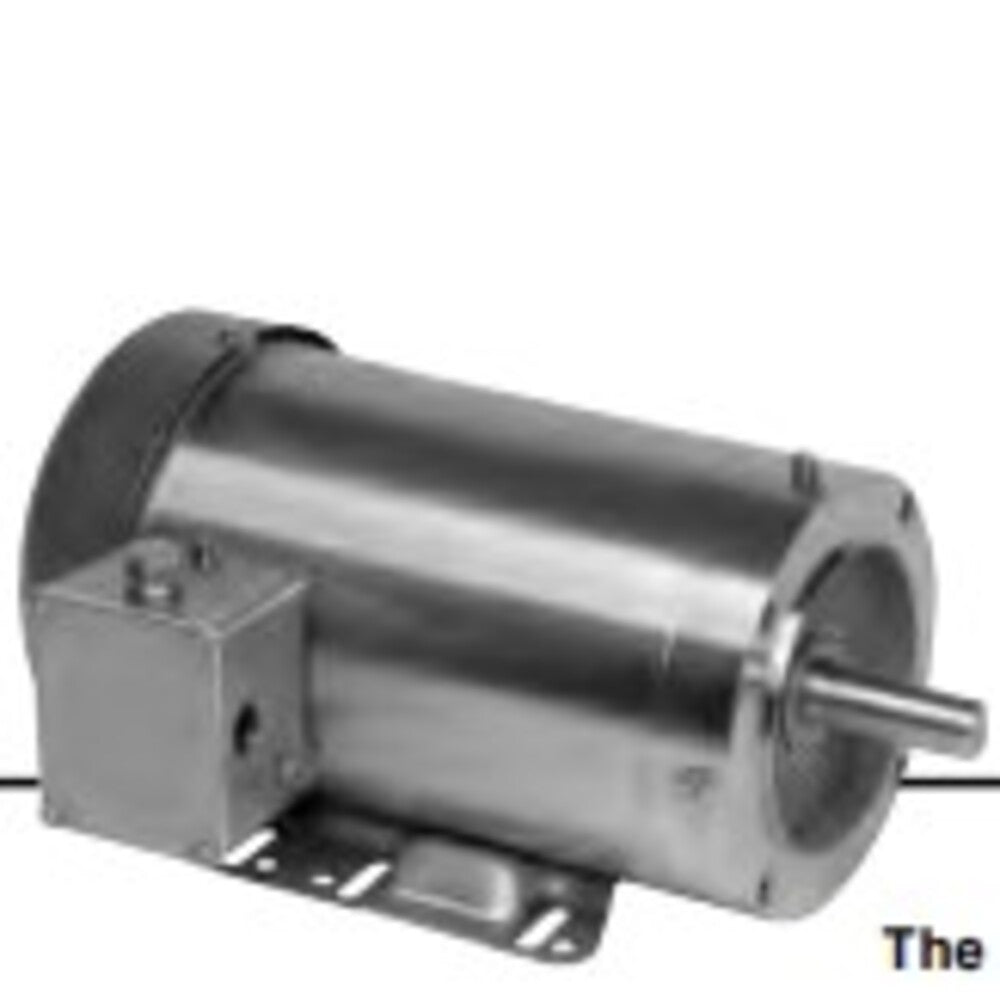

US-Nidec WDS2P2AFHC Stainless Steel Washdown Motor 2 HP 56C Frame TEFC

Product Description

The US-Nidec WDS2P2AFHC Stainless Steel Washdown Motor is designed for demanding environments. This motor features a stainless steel construction for durability and resistance to corrosion. It operates on three-phase power, with a 2 HP rating and a 56C frame. The Totally Enclosed Fan Cooled (TEFC) enclosure ensures protection against moisture and contaminants.

• Three Phase Operation
• 2 HP Power Rating
• 56C Frame Size

Product Highlights

This stainless steel washdown motor is suitable for various industrial applications where cleanliness and reliability are critical. Its TEFC enclosure and stainless steel body make it ideal for food processing plants, dairies, and other washdown environments.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: WDS2P2AFHC

Technical Specifications

• Electrical Type: Three Phase
• HP: 2
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: TEFC
• Phase: Three
• Voltage: 208-230/460
• Rotation: REV
• Overload Protection: None
• Material: Stainless Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2RS-J/C3 / 6205-2RS-J/C3
• Mounting: C-Face / Footed
• Amperage: 5.8-5.4/2.7
• Efficiency: 86.50%
• Insulation Class: F
• Service Factor: 1.15
