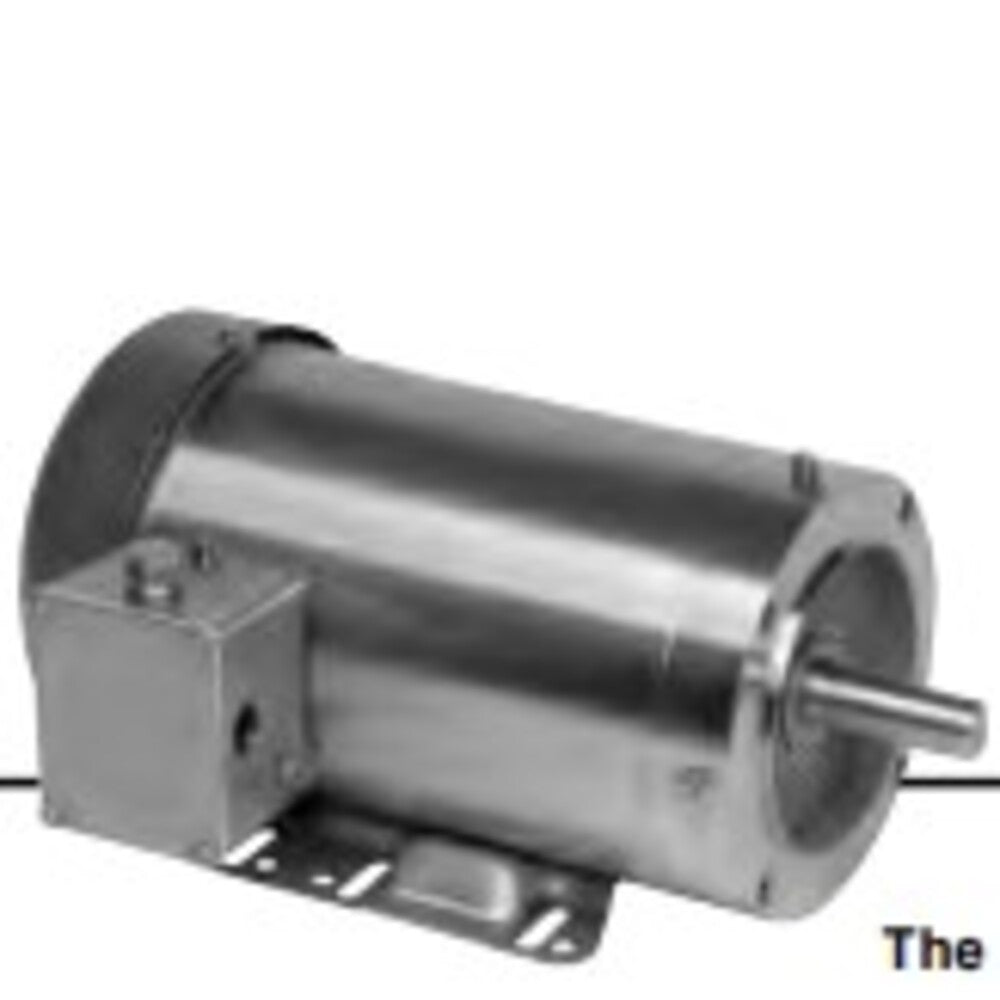

US-Nidec WDS1P2AHC Stainless Steel Washdown Motor Three Phase 1 HP 56 Frame

Product Description

The US-Nidec WDS1P2AHC Stainless Steel Washdown Motor is ideal for high-hygiene environments. This three-phase motor delivers 1 HP, utilizing a 56 frame and a totally enclosed nonventilated (TENV) enclosure. It operates efficiently on 208-230/460V, providing reliable performance with ball bearings and stainless steel construction.

• Three phase motor design
• Totally enclosed nonventilated (TENV) enclosure
• Reliable performance with ball bearings

Product Highlights

Durable stainless steel washdown motor designed for demanding environments such as food processing and pharmaceuticals.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: WDS1P2AHC
• Enclosure: TENV
• Phase: Three

Technical Specifications

• Electrical Type: Three Phase
• HP: 1
• Frame: 56
• Diameter: 6.5 inches
• Voltage: 208-230/460
• Rotation: REV
• Material: Stainless Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203-2RS-J/C3 / 6205-2RS-J/C3
• Mounting: C-Face / Footed
• Amperage: 3.1-2.9/1.4
• Duty Cycle: Continuous
• Ins. Class: F
• Max. Ambient Temp: 104 Degrees F
• Service Factor: 1.2
• Nominal Efficiency: 85.5%
• Overall Length: 11 53/64 inches
• Shaft Material: 303 Stainless Steel
• Bolt Circle Dia: 5 7/8 inches
• Length Less Shaft: 10 inches
• Conduit Box Location: Exterior
• Motor Frame Material: Stainless Steel
• Motor Shaft Rotation: CW/CCW
• Motor Sub Application: Bakeries, Canners, Dairies, Drug and Cosmetic Manufacturers, Food Processors, Meat Packers
• Motor Enclosure Design: Totally Enclosed Nonventilated
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: None
• Country of Origin: Mexico
