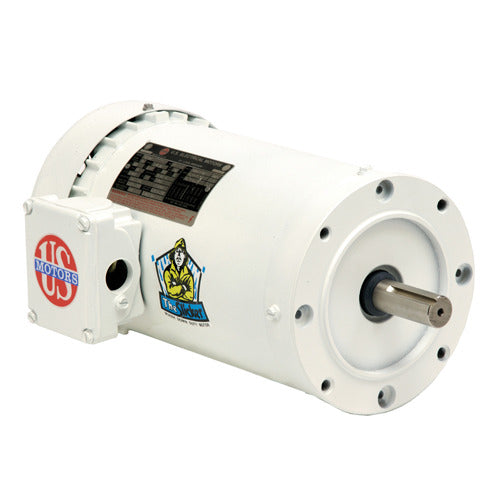

US-Nidec WD34S2ACR White Epoxy Washdown Motor 3/4 HP TENV C-Face / Footless

Product Description

The US-Nidec WD34S2ACR White Epoxy Washdown Motor is designed for reliable performance in harsh environments. This motor has a power rating of three-fourths horsepower and operates on three-phase current. It features a totally enclosed non-ventilated (TENV) design, allowing it to withstand exposure to moisture and chemicals commonly found in washdown applications.

• Electrical Type: Three Phase
• Frame Size: 56
• Voltage: 208-230/460

Product Highlights

Durable motor suitable for wet and harsh environments. Ideal for agricultural, food processing, and industrial applications where exposure to water is likely.

Product Information

Standard Information

• Motor Type: Washdown Duty
• Enclosure Type: TENV

Technical Specifications

• Horsepower: 3/4 HP
• Bearings Type: Ball / Ball
• Amperage: 2.6-2.4/1.2
• Mounting Type: C-Face / Footless
• Rotation: REV
• Material: Rolled Steel
• Insulation Class: F
• Efficiency: 82.50%
