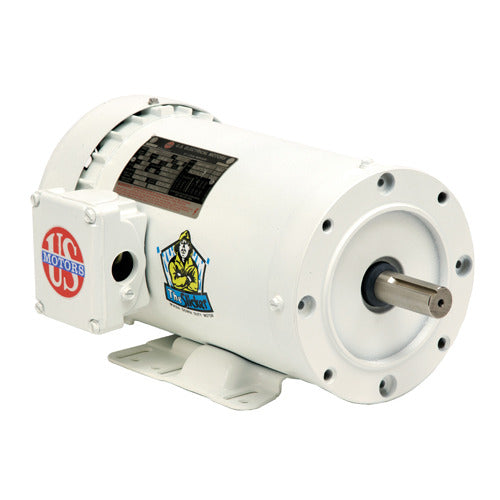

Nidec WD12S2AC White Epoxy Washdown Motor 1/2 HP 1800 RPM 208-230/460V

Product Description

The Nidec WD12S2AC is a reliable washdown motor designed to meet demanding industrial needs. This three-phase motor operates at one half horsepower with a speed of 1800 RPM. It supports voltages of two hundred eight volts to four hundred sixty volts, making it suitable for various applications.

• Electrical Type: Three Phase
• Frame Size: 56
• Enclosure Type: Totally Enclosed Non-Ventilated (TENV)

Product Highlights

The Nidec WD12S2AC motor is built for durability and efficiency. It features rolled steel construction and ball bearings, ensuring long service life and minimum maintenance.

Product Information

Standard Information

• Motor Type: Washdown Motor
• HP: 1/2

Technical Specifications

• RPM: 1800
• Voltage: 208-230/460V
• Frame Size: 56
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Amperage: 1.9-1.8 / 0.9
• Mounting Type: C-Face / Footed
• Efficiency: 82.50%
