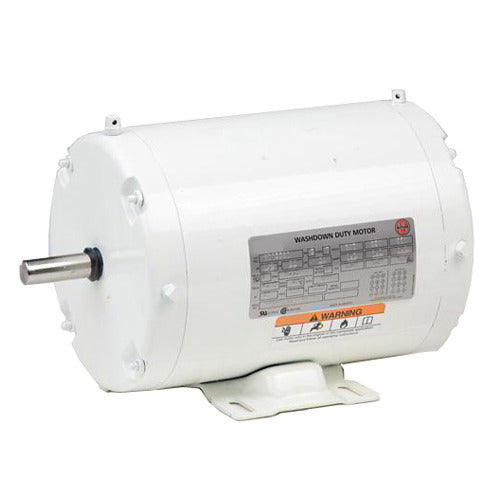

U.S. Motors WD12S2A Washdown Motor 3 Phase 1/2 HP 1725 RPM

Product Description

The U.S. Motors WD12S2A is a washdown motor designed for rigorous environments. This three-phase motor delivers 1/2 horsepower at 1725 RPM, making it reliable for demanding applications.

• 3-phase motor
• 1/2 horsepower
• 1725 RPM speed

Product Highlights

This washdown motor features a totally enclosed nonventilated (TENV) enclosure and a rigid base for secure mounting. It operates at a voltage of 208-230/460V, suitable for various industrial uses.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD12S2A

Technical Specifications

• Electrical Type: Three Phase
• Horsepower: 1/2 HP
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TENV
• Phase: Three
• Voltage: 208-230/460V
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings Size: 6203 / 6203
• Mounting: Rigid Base
• Amperage: 1.9-1.8/0.9
• Shaft Type: Single
• Efficiency: 80%
• Insulation Class: F
• Service Factor: 1.2
• Max. Ambient Temperature: 104 Degrees F
• Duty Cycle: Continuous
• Overall Length: 10 13/16 inches
• Length Less Shaft: 8 15/16 inches
• Shaft Length: 1 7/8 inches
• Shaft Diameter: 5/8 inch
