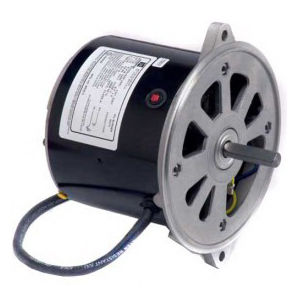

Nidec Motor Corporation U.S. MOTORS 3083

U.S. MOTORS Oil Burner Motor Split Phase 1/7 hp 115 V 2.4 A 60 Hz 1 Phase 48M Frame 3450 Rpm 1 Speed 10.58 ftoz Reversible Service Factor: 1 55/8 Inch Body Diameter 1/2 Inch Dia x 2 Inch L Shaft Sleeve Bearing Flange Mount Mounting Position: All Angle 49.8% Efficiency 40 deg C Class A Insulation Totally Enclosed Rolled Steel
• Manual reset manual thermal protection
• 20 Inch leads located at 3 Oclock viewed from end opposite shaft
• 56N frame has 2 holes and screws for mounting outlet box
• Sleeve bearings have all angle thrust system
Standard/Approvals: CSA Certified UL Listed
