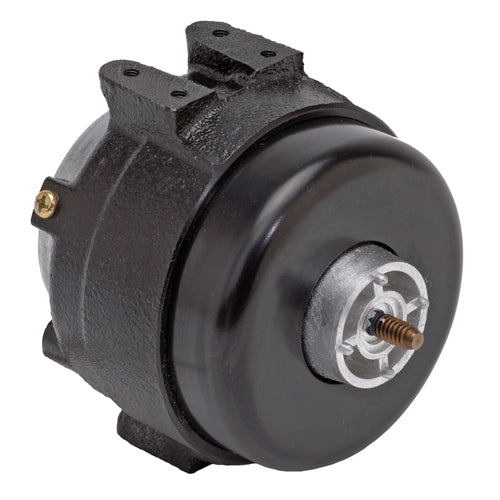

U.S. MOTORS Fan Motor Shaded Pole 16 W 115 V 1 A 50/60 Hz 1 Phase 1550 Rpm 1 Speed CWLE 3.6 Inch Body Diameter 41/2 Inch Overall Length 1/420 Dia x 1/2 Inch L Shaft Sleeve/Ball Bearing Extended Stud/Resilient Rings Mount Mounting Position: All Angle 2 ft Cord 40 deg C Class A Or B Insulation Totally Enclosed Air Over Cast Iron Includes: (1) Hub Washer (4) Mounting Screws (1) Speed Nut and Vibration Dampener
� Permanently lubricated bearings
� Impedance protected
� Cord with molded strain relief
Standard/Approvals: CSA Certified UL Listed
Application: Condensing Units Conditioned Air Systems Evaporative Coolers and Furnaces
