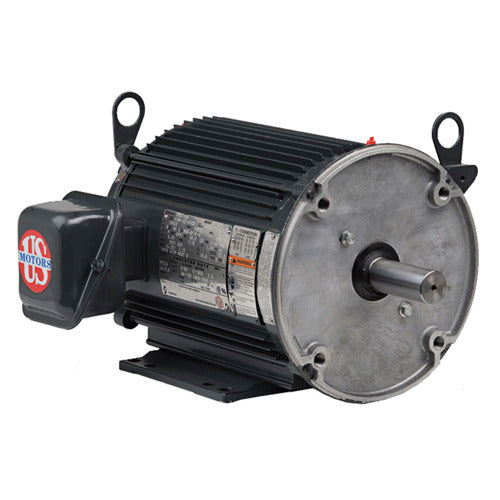

US-Nidec UN7T2BC Vector Duty Motor 7.5HP 230/460V

Product Description

The US-Nidec UN7T2BC Vector Duty Motor offers exceptional performance for various industrial applications. This three-phase motor operates at 7.5 horsepower with a speed of 3600 RPM, making it suitable for demanding environments. Designed with a durable aluminum body, it ensures reliable operation even under tough conditions.

• 7.5 horsepower, 3600 RPM
• Three-phase, 230/460V
• C-Face / Footed mounting

Product Highlights

This motor, known for its efficiency and durability, is perfect for industries requiring robust motor solutions. The TENV enclosure ensures it operates without overheating, further enhancing its reliability. Its compact frame and ball bearings make it an ideal choice for various mounting configurations.

Product Information

Standard Information

• Brand: US-Nidec
• Model: UN7T2BC
• Power: 7.5HP
• Voltage: 230/460V

Technical Specifications

• HP: 7.5
• RPM: 3600
• Frame: 213TC
• Enclosure: TENV
• Phase: Three
• Voltage: 230/460
• Bearings Type: Ball / Ball
• Bearings Size: 6206-2Z-J/C3 / 6208-2Z-J/C3
• Amperage: 18.8/9.4
• Insulation Class: F
• Efficiency: 92.4%
• Material: Aluminum
