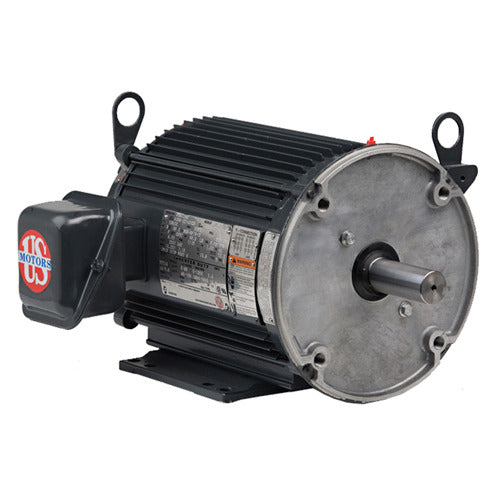

US-Nidec UN3T2BC Vector Duty Motor 3HP 3600RPM 230/460V TENV 182TC

Product Description

The US-Nidec UN3T2BC Vector Duty Motor is designed for high-performance applications. This motor is built with efficiency and reliability in mind, making it suitable for a wide range of industrial uses.

• Three Phase
• 3 Horsepower
• 3600 RPM

Product Highlights

This vector duty motor from US-Nidec offers robust performance with high efficiency. It is crafted from aluminum and features a TENV enclosure, ensuring durability and protection. Ideal for various motor-driven systems.

Product Information

Standard Information

• Electrical Type: Three Phase
• Horsepower: 3 HP
• RPM: 3600
• Frame: 182TC
• Enclosure: TENV
• Phase: Three
• Voltage: 230/460
• Rotation: REV
• Bearings Type: Ball/Ball
• Material: Aluminum

Technical Specifications

• Bearings Size: 6206-2Z-J/C3 / 6206-2Z-J/C3
• Mounting: C-Face / Footed
• Amperage: 10.1/5
• Shaft Type: Single
• Insulation Class: F
• Efficiency: 87.50%
• Service Factor: 1
• Frame Size: 182TC
