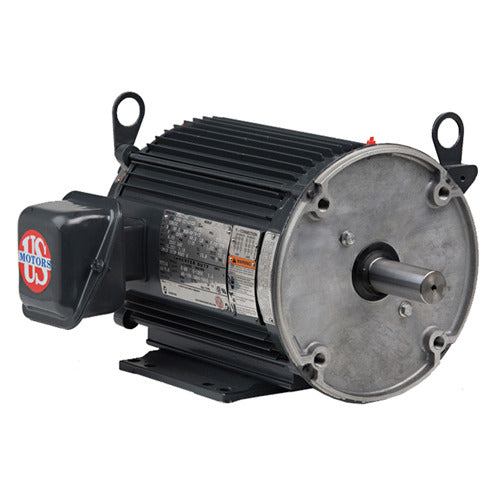

US Motors UN14T2BC Vector Duty Motor 3-Phase 0.25 HP 230/460V

Product Description

The US Motors UN14T2BC Vector Duty Motor is designed for three-phase applications with a power rating of 0.25 horsepower. With a maximum operating speed of 3600 RPM, this motor ensures efficient performance.

• Power: 0.25 HP
• Enclosure: TENV
• Voltage: 230/460

Product Highlights

This vector duty motor from US Motors is built for reliable performance in demanding environments. It operates at 3600 RPM and supports three-phase power configurations.

Product Information

Standard Information

• Brand: US Motors
• MPN: UN14T2BC
• Voltage: 230/460

Technical Specifications

• Electrical Type: Three Phase
• HP: 0.25
• RPM: 3600
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: TENV
• Material: Aluminum
• Bearings Type: Ball
• Bearings Size: 6203-2Z-J/C3 / 6205-2Z-J/C3
• Mounting: C-Face / Footed
• Amperage: 1/0.5
• Efficiency: 77 percent
• Insulation Class: F
• Service Factor: 1
