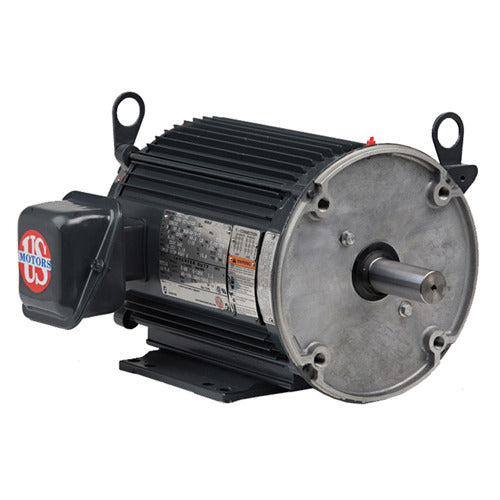

US-Nidec UN10T2BC Vector Duty Motor 10 HP 230/460V

Product Description

The US-Nidec UN10T2BC Vector Duty Motor is a three-phase motor designed for various applications. With a power rating of ten horsepower and operating at three thousand six hundred RPM, this motor is suitable for heavy-duty use. It operates at both two hundred thirty and four hundred sixty volts. This model does not have an overload protection feature.

• Ten horsepower and three phase operation
• Compact design with TEFC enclosure
• Efficient operation with a power factor corrected to 93.00%

Product Highlights

This motor is effective for industrial applications requiring reliable performance and durability. Its design supports various mounting options and ensures effective heat dissipation.

Product Information

Standard Information

• Electrical Type: Three Phase
• Rotation: REV

Technical Specifications

• Horsepower: 10 HP
• RPM: 3600
• Frame Size: 215TC
• Voltage: 230/460
• Enclosure Type: TEFC
• Amperage: 25.3/12.7
• Material: Aluminum
• Bearings Type: Ball / Ball
• Mounting Type: C-Face / Footed
