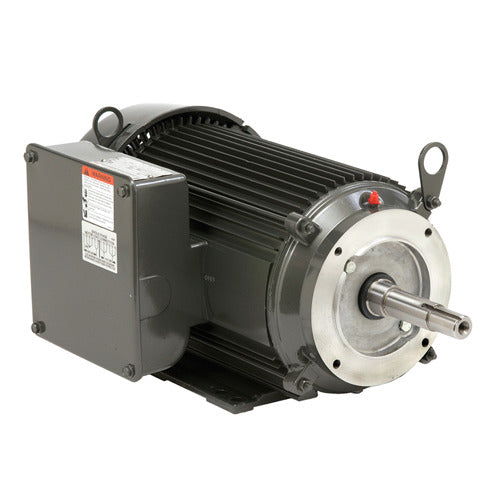

Nidec UJ5C2K21P Close-Coupled Pump Motor 5 HP Cap Start Run 1800 RPM 230V 215JP Frame

Product Description

The Nidec UJ5C2K21P Close-Coupled Pump Motor is a powerful and reliable motor designed for various applications. With 5 horsepower and a capacitor start/run, it operates at 1800 RPM with a voltage of 230V. Its 215JP frame and totally enclosed fan-cooled (TEFC) enclosure ensure durability and efficiency.

• Capacitor Start/Run
• 5 HP and 230V
• TEFC Enclosure

Product Highlights

This Nidec motor is perfect for pumps requiring a robust motor with a 215JP frame. It features ball bearings, a single phase, and a C-Face/Footed mounting design.

Product Information

Standard Information

• Brand: Nidec
• MPN: UJ5C2K21P

Technical Specifications

• Motor Type: Capacitor-Start/Capacitor-Run
• HP: 5
• Nameplate RPM: 1800
• Voltage: 230
• Enclosure: TEFC
• Phase: Single
• Frame: 215JP
• Rotation: REV
• Amperage: 23.0
• Material: Aluminum
• Bearings Type: Ball / Ball
• Bearings Size: 6205-2Z-J/C3 / 6309-2Z-J/C3
• Mounting Type: C-Face / Footed
• Efficiency: 82.40%
• Service Factor: 1.15
• Insulation Class: F
• Country of Origin: Mexico
