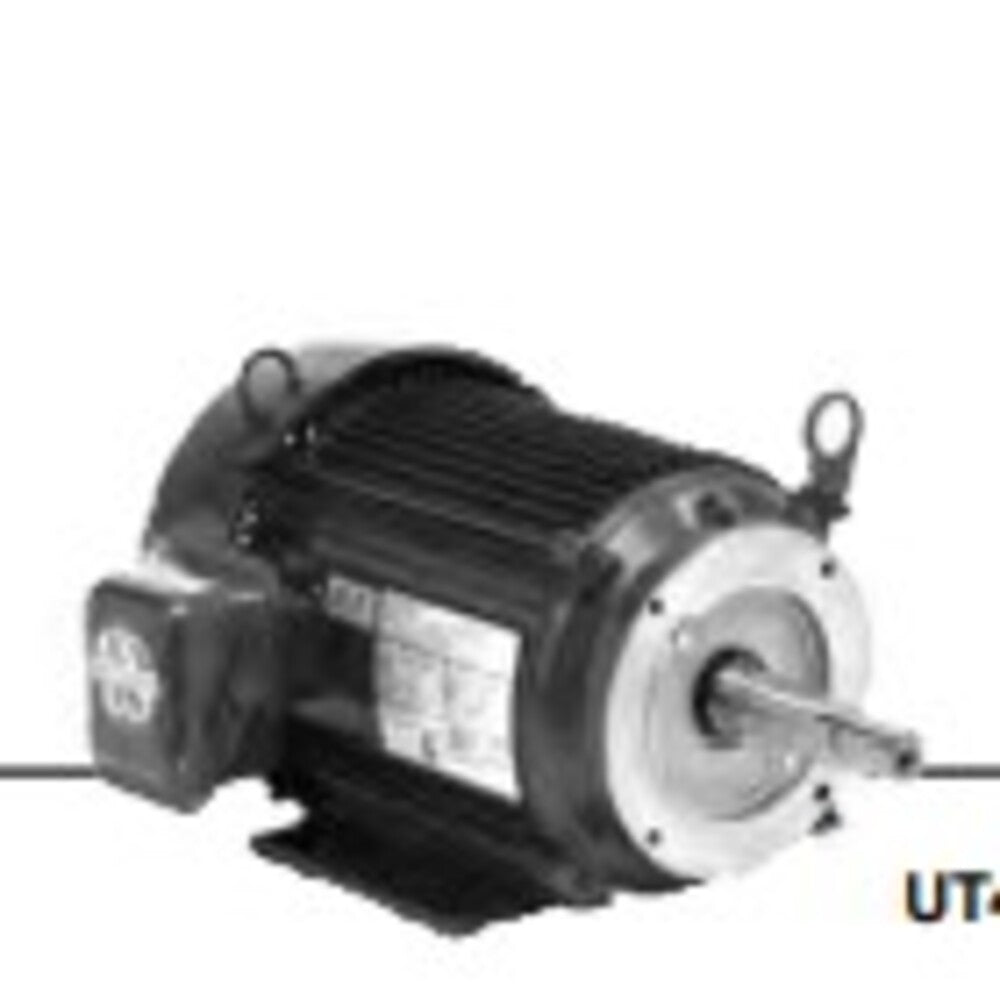

US-Nidec UJ32P1DM Close Coupled Pump Motor 1 1/2 HP

Product Description

The US-Nidec UJ32P1DM is a three-phase close coupled pump motor designed for efficient performance in various pumping applications. With a power of one and a half horsepower and a rotational speed of three thousand six hundred RPM, this motor is built for reliability and durability. It features a TEFC enclosure, protecting the internal components from dust and moisture, while the C-Face/Footed mounting type ensures stability during operation.

• Three-phase electrical type
• Compact design with TEFC enclosure
• Versatile voltage options of 208-230/460

Product Highlights

This motor is suitable for a variety of applications, including water and fluid handling systems. The robust rolled steel construction, combined with a single shaft type, makes it an excellent choice for many industrial uses.

Product Information

Standard Information

• Electrical Type: Three Phase
• HP: 1 1/2

Technical Specifications

• RPM: 3600
• Frame Size: 143
• Enclosure: TEFC
• Voltage: 208-230/460
• Rotation: REV
• Overload Protection: None
• Material: Rolled Steel
• Mounting Type: C-Face / Footed
• Amperage: 4.1-3.8/1.9
• Shaft Type: Single
• Efficiency: 84.00%
• Service Factor: 1.25
