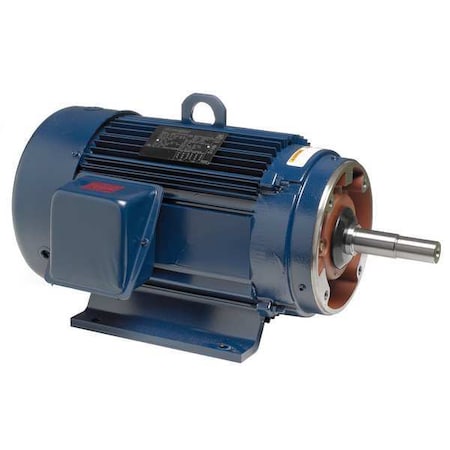

US-Nidec UJ2P1DM Close Coupled Pump Motor 2 HP 3600 RPM 145JM

Product Description

The US-Nidec UJ2P1DM Close Coupled Pump Motor is a reliable motor designed for various pumping applications. It features a power output of 2 HP and operates at 3600 RPM, making it suitable for demanding tasks.

• Three-phase electrical type
• Rated at 208-230/460 volts
• TEFC enclosure for durability

Product Highlights

This motor is built with rolled steel material for robustness and has ball bearings for smooth operation.

Product Information

Standard Information

• Brand: US-Nidec
• MPN: UJ2P1DM
• Application: Pump

Technical Specifications

• HP: 2
• RPM: 3600
• Frame: 145JM
• Enclosure: TEFC
• Phase: Three
• Voltage: 208-230/460
• Rotation: REV
• Amperage: 5.4-4.9/2.5
• Bearing Type: Ball / Ball
• Bearing Size: 6203-2Z-J/C3 / 6206-2Z-J/C3
• Material: Rolled Steel
• Mounting: C-Face / Footed
• Efficiency: 86.50%
• Insulation Class: F
• Service Factor: 1.25
• Overall Length: 15.300 in
• Motor Design: 3-Phase
• Motor Enclosure Design: Totally Enclosed Fan-Cooled
• Motor Thermal Protection: None
• Shaft Type: Single; JM Threaded; 7/8 in diameter; 4 1/4 in length
• Max Ambient Temperature: 40 Degrees C
• Duty Cycle: Continuous
• Regreasable Bearings: Permanently Lubricated Bearings
• Country of Origin: Mexico
